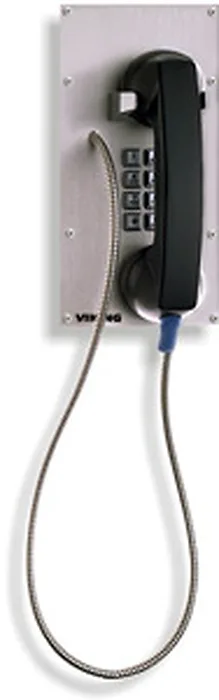

The K-1900-8 panel phone can either auto-dial a phone number each time the handset is lifted be used as a multi-number auto-dialer or be used as a standard (dumb) phone. The unit will Touch Tone or pulse dial and will not auto-dial on incoming calls. The K-1900-8 housing consists of a heavy gauge stainless steel panel a metal Touch Tone keypad an armored cable a heavy duty handset and an all metal cradle. The K-1900-8 can be easily Touch Tone programmed at the shop or installation site. All programming is stored in non-volatile memory. For outdoor or harsh environments the K-1900-8-EWP is available with Enhanced Weather Protection (EWP). The EWP version includes faceplate transmitter and receiver gaskets hand soldered silicon sealed connections gel-filled butt connectors as well as a urethane potted circuit board with weather sealed field-adjustable trim pots and DIP switches for easy on-site programming. Applications Catalog sales Kiosks Courtesy and customer service phones Automated tellers (ATM s) Hot-line reservation phones Security and emergency phones Replaces leased ringdown circuits Gate/entrance communication in noisy locations (diesel trucks factory noise etc.) Features Auto dials 1 (up to 32 digits) programmable speed dial number Multi-number dialer mode adds 5 (up to 16 digits) speed dial numbers Touch Tone or pulse dialing Touch Tone keypad Non-volatile memory (no batteries required) Operates on analog PABX and key system extensions or analog Centrex and C.O. lines Programmable 6 digit security code Touch Tone programmable Vandal resistant features: 1/8 thick stainless steel panel armored cable metal cradle and sealed metal keypad Programmable pre-dial pause Blocks fraudulent calls from hand held pocket dialers Limited toll restriction in dumb phone mode Hearing aid compatible amplified handset with sealed push button volume control Optional Enhanced Weather Protection (EWP) Specifications Power: Telephone line powered (20V DC/18mA minimum) Dimensions: Overall - 127mm x 254mm x 102mm (5 x 10 x 4 ) Shipping Weight: 1.8 kg ( 4 lbs.) Operating Temperature: 0 C to 32 C (32 F to 90 F) Humidity: Standard - 5% to 95% non-condensing EWP - Up to 100% condensing Panel Material: .125 inch thick stainless steel Handset Cable Length: Standard K-1900-8 - 86cm (34 ) K-1900-8-EWP - 137cm (54 ) Mounting: Flush mount or surface mount with optional VE-5x10 Dial Speed: Touch Tone - Normal = 120ms on/off Fast = 50ms on/off; Pulse - Normal = 10 pps Fast = 20 pps Connections: (2) gel-filled butt connectors
