The E-40 Series Entry phones are compact weather and vandal resistant telephone line powered speaker phones designed to provide two-way hands-free communication. The E-40ft. s compact size allows it to be mounted in a standard single gang electrical box. The E-40 is available in three different attractive finishes to match your door hardware light fixtures etc. The E-40-PB has a Polished Brass faceplate with an extremely durable U.V. resistant high gloss clear powder paint coating to prevent tarnishing. The E-40-BN has a stainless steel faceplate with Oil Rubbed Bronze (dark brown with fine copper metallic) color extremely durable U.V. resistant matte finish powder paint. The E-40-SS has a durable Stainless Steel faceplate with a brushed (satin) finish. One to four E-40 entry phones can share a single phone line with house or small business telephones when used with a Viking model C-2000A Advanced Door/Gate and Entry Phone controller. The E-40 Entry phones can also be connected to an unused analog station port (programmed for ring down) on a phone system or connected directly to a telephone line when used with a Viking model K-1900-5 auto dialer. The E-40 features microphone and speaker volume controls selectable auto answer for monitoring and intelligent call progress detection for automatic hang-up when the call is completed FEATURES - Compact size: Front panel is the size of a typical single gang midsize wall plate - Mounting: Flush mounts in any single gang (1.7in. deep minimum) electrical box (single gang old work rough-in box included) or surface mounts in a single gang wet location box (not included) - Available in attractive finishes: Polished Brass Oil Rubbed Bronze and Brushed Stainless Steel - Weather Resistant Features: Mylar speaker faceplate gasket mic and speaker gasket internally sealed (IP67) push button switch self draining mic mount and UV stable weather resistant powder coating (E-40-PB & E-40-BN only) - Vandal Resistant Features: 16 gauge polished brass or 18 gauge stainless steel faceplate stainless steel push button stainless steel speaker screen scratch resistant powder coating hex drive mounting screws - Telephone line powered - Two way handsfree communication - Microphone and speaker volume controls - Programmable Intelligent call progress detection for automatic hang-up on CPC silence busy signal or time out - Selectable auto answer feature for monitoring - Programmable VOX (mic/speaker) switching speed APPLICATIONS - Door or gate communication - Use with Viking C-2000A Door and Gate Controller to control 1 to 4 entry phones on a single phone line - Residential commercial and industrial door security - Business delivery entrances - Use in conjunction with a Viking K-1900-5 Auto Dialer on telephone lines or analog PABX/KSU stations - Use on any programmed ringdown circuit of an analog PABX/KSU station

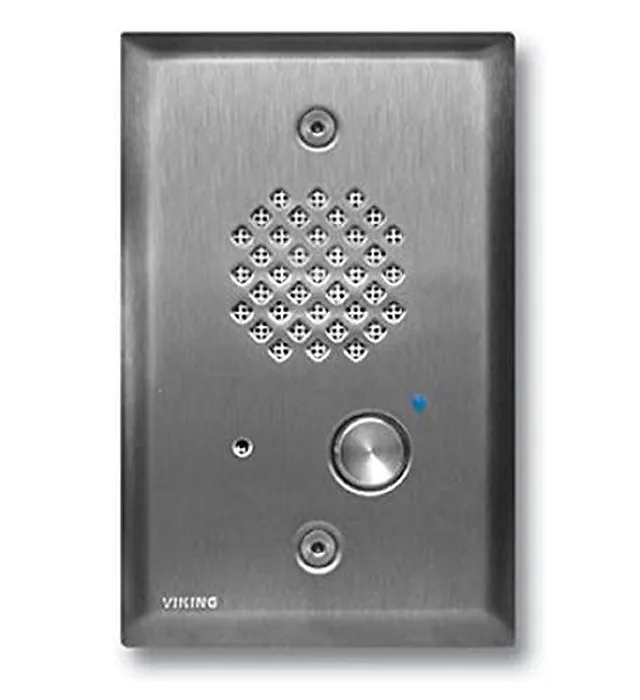

The E-40 Series entry phones are compact, weather and vandal resistant, telephone line powered speaker phones designed to provide two-way handsfree communication. The E-40's compact size allows it to be mounted in a standard single gang electrical box. The E-40 is available in five different attractive finishes to match your door hardware, light fixtures, etc. Replacement E-40 faceplates (PNL40) can be purchased separately and are available in all five standard finishes.The E-40's blue LED continually provides light for locating the push button in dark locations, dims to indicate off hook and flashes during incoming ring. Note: LED not available on all models. Contact Viking for more information.Network & CommunicationConnectivity Technology: CablePhysical CharacteristicsColor: Brushed Stainless SteelForm Factor: Flush Mount, Surface MountDurability: Vandal Resistant, Weather ResistantMiscellaneousPackage Contents: Brushed Stainless Steel Entry PhoneGel-Filled Butt ConnectorsCircuit Board Mounting Plate1/4" Thick Foam Faceplate GasketFaceplateLED Light Pipe2 x (6-32 x 1.25") Long 5/64" Hexdrive Flathead ScrewsAdditional Information: Telephone line poweredMicrophone and speaker volume controlsProgrammable VOX (mic/speaker) switching speedMylar speakerCompatibility: Viking Products:C-200C-250C-2000BSLP-1SLP-4K-1900-5K-1900-30Certifications & Standards: FCC Part 68FCC Part 15 Class AWarrantyLimited Warranty: 1 Year
