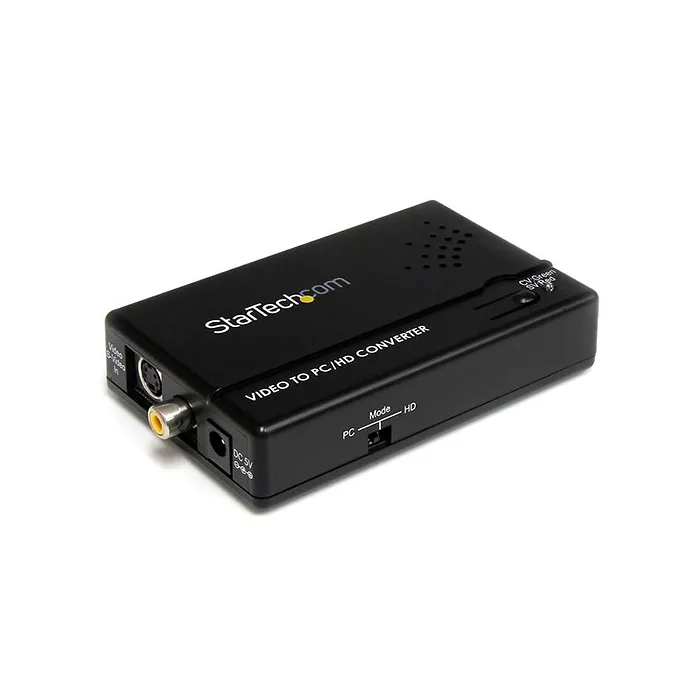

The VID2VGATV2 Composite and S-Video to VGA Video Scan Converter (with Scaler) provides a simple way to convert Composite or S-Video signals to VGA (or Component RCA) output, for use with computer monitors, projectors or HDTV sets. Equipped with an On-Screen Display (OSD) menu and dip switches for simple configuration and selection of your video output settings, this compact video scaler installs quickly and easily for a true plug-and-play experience. An integrated scaler circuit dynamically converts the S-Video or Composite video input signal, giving you multiple output resolutions to choose from, to ensure compatibility with your display or projector. Plus, the Component/S-Video-VGA Converter includes a VGA to Component (RCA) breakout cable, which enables you to connect to TV sets that are not equipped with a VGA port. Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Connector A
1 - Composite Video (1 x RCA) Female

Connector A
1 - S-Video (4 pin Mini-DIN) Female

Connector B
1 - VGA (15 pin High Density D-Sub) Female Enclosure Type
Plastic

LED Indicators
1 - Composite (Yellow) / S-Video (Red) input indicator Output Current
1A

Output Voltage
5 DC

Power Adapter Included
Yes

Power Consumption
2.5W Supported Resolutions
PC: 1600x1200, 1280x1024, 1024x768
HDTV: 480p (50/60Hz), 576p (50Hz), 720p (50/60Hz), 1080p (50/60Hz) Item Dimension (L"xW"xH"):
8.11 x 4.53 x 2.24

Weight:
0.66 lb

Warranty Information
2 Years
