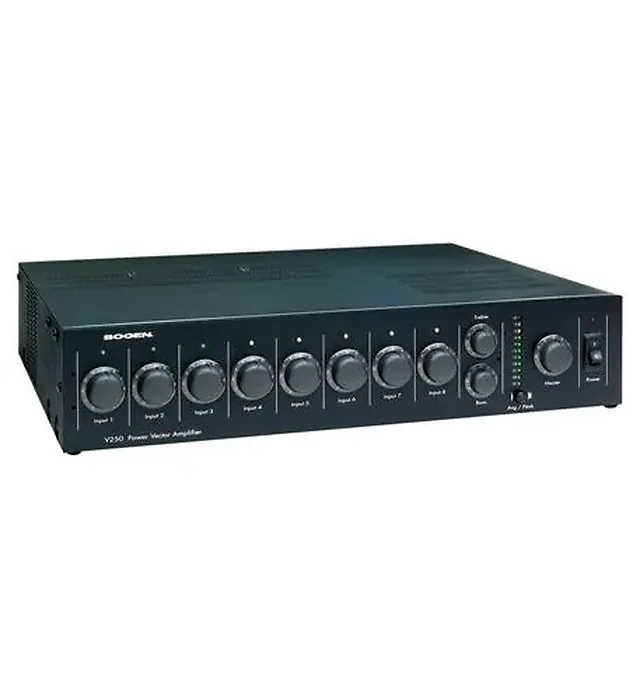

- 5 models ranging from 35W to 250W each; a mixer-only version (VMIX) is also available- Capable of handling 70V, 25V, 8-ohm, and 4-ohm speaker loads- 8 module bays- Wide selection of advanced plug-in modules (modules sold separately)- 4 levels of priority between modules- 2 module bays capable of handling plug-in signalprocessing output modules- 11-segment LED output level meter monitors the output level of the power amplifier with Peak and Average meter switch- Motorized master volume control can be remotely operated- Lockable switch permits user to select either transformer-coupled outputs or a direct low impedance output- 5-position barrier strip, with clamping washers, provides connections for speaker loads- Bridging In/Out connector- External access to priority mute buses- Bridging jack and Mute terminals join multiple Power Vector amps and mixers together- Independent volume control for each of the eight module bays- Two-color LED for each channel indicates input signal or clipping- Bass and treble control with bypass switch (located in module bay 6)- 125 Hz Low Cut switch (located in module bay 6)- Signal-processing insert jacks allow external equipment to be inserted between the pre-amp output and the power amp input - Pre-EQ, unbalanced, buffered output signal (“post” all unit controls, but “pre” any external “Insert” equipment connected)- Grounded, unswitched AC convenience receptacle with a 500W maximum capacity provided for external equipment- 8 module security cover/filler plates included with amplifier (PVMC)- Push-button remote volume control panel (Model RVCP, sold separately)- Security cover to selectively protect volume, bass, and treble controls (Model PVSC, sold separately)- Rack mountable (with rack mounting kit RPK87, sold separately)- 2 rack spaces high (3-1/2")- Listed to UL Standard 60065 for U.S. and CanadaBGV100
