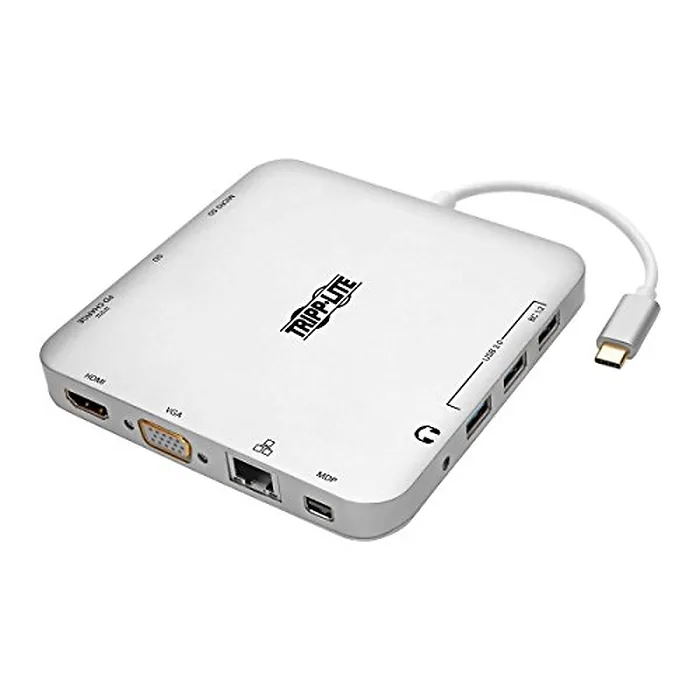

USB-C Docking Station Turns Your Device’s USB-C or Thunderbolt 3 Port into a Multiport Workstation The U442-DOCK2-S expands the potential of your tablet, laptop, Chromebook, MacBook, smartphone or PC’s USB-C or Thunderbolt 3 port. It’s ideal for transmitting digital audio and video to a large display, adding a thumb drive or other USB peripheral, powering and charging a PD Charging-compliant mobile device, connecting to a Gigabit Ethernet network and a lot more—all at the same time. Supports USB DisplayPort Alternate Mode for Transmitting Audio/Video Signals With a source device that also supports USB DisplayPort Alt Mode, you can extend video from your primary display to another, duplicate the same video on both displays, or change the second display to your primary. Transmits Crystal-Clear 4K Video and Digital Audio To send digital audio and Ultra High Definition video to a 4K-ready HDMI or Mini DisplayPort television, projector or monitor, connect the corresponding port to the display using an HDMI or mDP cable (sold separately). The Mini DisplayPort and HDMI ports support UHD video resolutions up to 3840 x 2160 (4K x 2K) @ 30 Hz. The VGA port supports high-definition resolutions up to 1920 x 1200, including 1080p, at 60 Hz. Only one display can be connected at a time. A DisplayPort or DVI display may also be connected using an mDP to DP or HDMI to DVI adapter (adapters sold separately). Connects Keyboards, Thumb Drives and Other USB Peripherals The USB-A hub ports accept up to three USB peripherals, such as flash drives, mice, keyboards and printers. They support fast USB 3.1 Gen 1 data transfer rates up to 5 Gbps and are backward compatible with USB 2.0 and USB 1.1 devices. A BC 1.2-compliant port provides up to 1.5A of fast-charging power to mobile devices. Charges the Connected Laptop, Smartphone or Other Device The USB-C Power Delivery (PD) port provides power and charging to the PD Charging-compliant device (such as a MacBook, Chromebook or Android smartphone) the U442-DOCK2-S is connected to. Connect the device’s AC wall charger to the USB-C PD port, which supports power input up to 60W—45W for the USB-C device and 15W dedicated to the U442-DOCK2-S and its USB-A hub ports. Accesses a Wired Gigabit Ethernet Network The RJ45 port offers access to a Gigabit Ethernet network when no Wi-Fi is available or when a wired connection offers faster speeds. Connect using a UTP cable (sold separately), and enjoy true 10/100/1000 Mbps Ethernet speeds for fast data transfers. Connects Audio Equipment The USB-C hub’s 3.5 mm mini stereo jack is convenient for connecting speakers, headphones or a microphone to your workstation. You can listen to music or record the latest episode of your podcast. Allows External Memory Access The memory card slots support Micro SD and SD/MMC cards for transferring data to and from your connected computer, laptop or tablet. Built-In USB-C Cable Connects in Either Direction Connect the reversible USB-C plug to your source device’s USB-C or Thunderbolt 3 port. The fumble-free USB-C plug connects in either direction to ensure fast, easy connection every time. Ready to Use Right Out of the Package The plug-and-play USB-C dock requires no software, drivers or external power. The compact unit fits easily into a pocket, briefcase or laptop bag for connecting on the go.
Technology
Cat5/5e, Cat6, DisplayPort, HDMI, Stereo Audio, USB, USB 3.0 (SuperSpeed), USB 3.1 (Gen 1), VGA/SVGA
INPUT
- Bus Powered:
Yes
USER INTERFACE, ALERTS and CONTROLS
- LED Indicators:
N/A
PHYSICAL
- Material of Construction:
PVC, Aluminium
- Color:
Silver
- Cable Jacket Rating:
VW-1
ENVIRONMENTAL
- Operating Temperature Range:
32 to 113 F (0 to 45 C)
- Storage Temperature Range:
14 to 158 F (-10 to 70 C)
- BTUs:
17.1 BTU/Hr
- Power Consumption (Watts):
5
- Operating Humidity Range:
10% to 85% RH, Non-Condensing
- Storage Humidity Range:
5% to 90% RH, Non-Condensing
- Power Provided to Connected Device(s):
5V 0.9A Output (USB A), Up to 20V 3A (60W) Input (USB C)
COMMUNICATIONS
- Network Speed:
1Gbps
- IEEE Standards Supported:
802.3, 802.3u, 802.3az, 802.3x
CONNECTIONS
- Ports:
11
- Side A - Connector 1:
USB C (MALE)
- Side B - Connector 1:
HD15 (FEMALE), HDMI (FEMALE), MINI DISPLAYPORT (FEMALE)
- Side B - Connector 2:
(3) USB 3.0 A (FEMALE)
- Side B - Connector 3:
MICRO SD (FEMALE), SD (FEMALE)
- Side B - Connector 4:
RJ45 (FEMALE)
- Side B - Connector 5:
USB C (FEMALE)
- Side B - Connector 6:
3.5MM (FEMALE)
- Connector Plating:
Nickel
FEATURES and SPECIFICATIONS
- Max Supported Video Resolution:
MDP/HDMI: 3840 X 2160 (4K X 2K) at 30HZ, VGA: 1920 X 1200 (1080P) at 60HZ
- Displayport Specification:
1.2
- HDMI Specification:
1.4
- HDCP Specification:
1.4
- USB Specification:
USB 3.0 (up to 5 Gbps), USB 3.1 Gen 1 (up to 5 Gbps)
- Audio Specification:
Stereo Audio
- Driver Required:
No
- Recommended Category Cable:
Cat5/Cat5e/Cat6 Cables
- USB Power Delivery (PD) Charging Support:
Yes
- Auto MDIX Support:
Yes
- Full Duplex Support:
Yes
- Suspend Mode Support:
Yes
- Remote Wakeup Support:
Yes
CERTIFICATIONS
- Certifications:
Tested to CE, FCC, RoHS, REACH
Package Includes
U442-DOCK2-S USB-C Laptop Docking Station w/HDMI, VGA, GbE, 4K, Thunderbolt 3 - mDP, USB-A, PD Charging, 30 Hz, Silver
Owners manual
Item Dimension(L inchxW inchxH inch)
6 x 7 x 1
Weight
1.00lb
Warranty Information
3-year limited warranty
