General Information

---

Manufacturer:Tripp Lite
Manufacturer Part Number:INTERNET750U
Manufacturer Website Address:http://www.tripplite.com
Brand Name:Tripp Lite

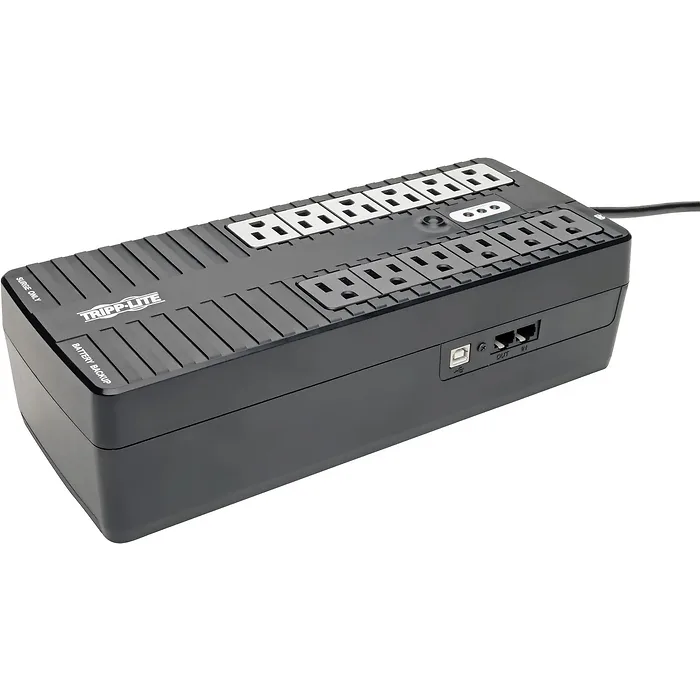

Product Name:750VA 6UPS/Surge and 6 Surge UPS System
Marketing Information:

UPS offers standby protection for PCs and peripherals to prevent data loss and system downtime by providing battery-supported AC output during brownouts and blackouts. Ultra-compact, wall-mountable UPS includes 12 widely spaced, output receptacles to accommodate large transformer plugs. 6 outlets provide full battery support and surge suppression for computers, monitors and other vital system components. 6 additional, surge suppression-only outlets are ideal for printers and other accessories not requiring battery support. Single-line, telephone suppression jacks protect modem or other peripherals with a standard dialup or DSL phone line connection. HID-compliant USB interface enables integration with built-in power management and auto-shutdown features of Windows and Mac OS X. Audible alarm and front panel LEDs offer status information regarding line and battery power operation. 750VA/450 watt power handling ability supports entry-level PCs for up to 45 minutes during power failures.

Packaged Quantity:1 Each
Product Type:Standby UPS

Technical Information

---

Plug/Connector Type:NEMA 5-15P
Receptacle Type:NEMA 5-15R
Receptacle Detail:12 x NEMA 5-15R
Number of Battery & Surge Outlets:6
Number of Surge-only Outlets:6
Dataline Protection:RJ-11
Protection Type:

• Black Out
• Brownout
• Over Voltage
• Surge
• Line Noise

Cord Length:6 ft
Transfer Time:4 ms
Application/Usage:

• Home/Office
• Media Center
• Commercial
• Desktop Computer
• Router
• Printer
• Server
• TV
• Gaming Console
• Blu-ray Player
• Audio System
• DVR
• Media Player
• Home Theater
• Digital Signage

Power Description

---

Load Capacity:750 VA/450 W
Input Voltage:110 V AC
Output Voltage:120 V AC
Waveform Type:Pulse-width Modulated Sine Wave
Surge Energy Rating:420 J

Management

---

Alarm:

• On Battery
• Self-test Operation

Controls/Indicators

---

Status Indicators:2 LEDs indicate on/off and overload/check battery

Interfaces/Ports

---

Modem (RJ-11):Yes
USB:Yes

Battery Information

---

Battery Chemistry:Sealed Lead Acid (SLA)
Backup/Run Time (Full Load):2.50 Minute
Backup/Run Time (Half Load):11 Minute
Battery Life:6 Year
Typical Battery Recharge Time:4 Hour
Hot Swappable:Yes

Environmental Conditions

---

Maximum Operating Temperature:104°F (40°C)

Physical Characteristics

---

Color:Black
Height:4"
Width:12"
Depth:7"
Form Factor:Ultra-compact Desk-mount
Weight (Approximate):15.50 lb

Miscellaneous

---

Package Contents:

• Internet Office 750VA UPS
• USB cable and phone cord
• Instruction manual with warranty information

Additional Information:

• • INTERNET750U standby UPS offers complete protection from blackouts, brownouts and surges on AC and tel/DSL dataline connections
  • 12 widely spaced outlets accommodate large transformer plugs without blocking outlets
  • 6 battery-supported outlets protect computers and vital system peripherals. 6 surge suppression-only outlets protect system accessories that do not require battery support
  • Provides battery-derived AC output during blackouts and brownouts
  • 750VA/450W power handling ability supports a variety of PCs, workstations and other sensitive electronics
  • Supports entry-level PC systems up to 35 min. during blackouts
  • Single-line tel/DSL surge suppression with line splitter protects two directly connected modems, fax machines or cordless phones sharing a single phone line connection
  • USB port, FREE PowerAlert Software and cabling provide monitoring of site power conditions
  • HID-compliant USB interface enables full integration with built-in power management and auto shutdown features of Windows, Mac OS X and Linux
  • Supports Tripp Lite's Watchdog system service to restore operation to locked equipment through soft reboot of application/OS or hard power off/on reboot of connected equipment; ideal for unattended kiosk applications
  • Hot-swap battery replacement supported via battery access door
  • Space-saving ultra-compact housing
  • Keyhole mounting flanges enable secure wallmount installation
  • 100,000 Ultimate Lifetime Insurance protects connected equipment from surge damage (USA & Canada only)

Certifications & Standards:

• UL1778 (USA)
• cUL (Canada)
• FCC Class B (emissions)
• NOM (Mexico)
• FCC Part 68 / Industry Canada (telecommunications)
• Conforms to IEEE 587 / ANSI C62.41 specifications

Software Included:PowerAlert Software
Recycled:No
Assembly Required:No
Environmentally Friendly:Yes
Environmental Certification:ENERGY STAR 2.0
Country of Origin:China

Warranty

---

Limited Warranty:3 Year
Additional Warranty Information:

• 2-year warranty;

• 100,000 connected equipment insurance (USA & Canada only).

Directly Connected Equipment Guarantee:

• 100000
