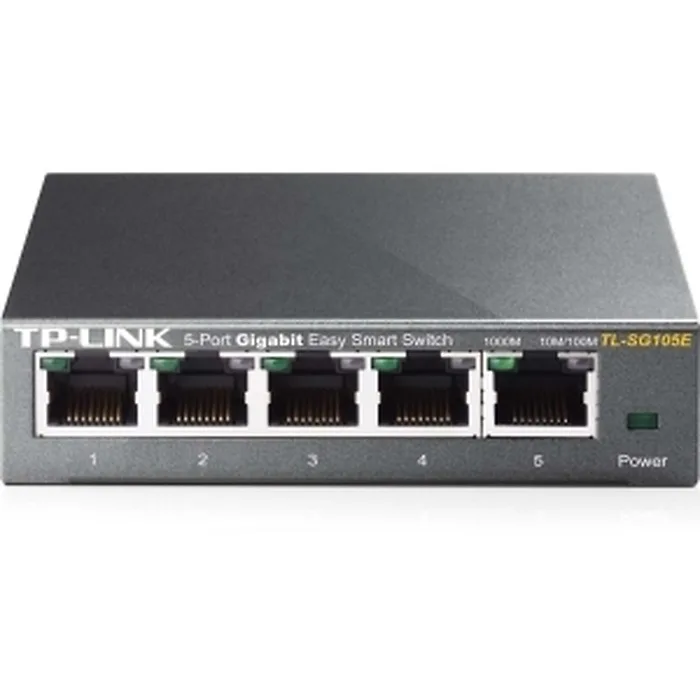

5-Port Gigabit Easy Smart Switch
HARDWARE FEATURES
Standards and Protocols:IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p

Interface:
5 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX Network Media:
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m) Dimensions (W X D X H):3.9 3.9 1.0 in. (100 98 25 mm)
Fan Quantity:Fanless
Power Supply:100-240VAC, 50/60Hz PERFORMANCE
MAC Address Table:8K
Packet Buffer Memory:2Mb
Packet Forwarding Rate:7.4Mpps
Jumbo Frame:16KB SOFTWARE FEATURES
Quality of Service:
Support Port Based/802.1p Based priority
Support 4 priority queues
Rate Limit
Storm Control L2 Features:
IGMP Snooping
Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention VLAN:
Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN

Transmission Method:Store-And-Forward OTHERS
Certification:FCC, CE, RoHS

Package Contents:
TL-SG105E
Power Cord
Installation Guide
Resource CD
Rubber Feet

System Requirements:Microsoft Windows XP, Vista Windows 7 or Windows 8, MAC OS, NetWare, UNIX or Linux. Item Dimension (L"xW"xH"):
7 x 5 x 5

Weight:
1.05 lb

Warranty Information:
5-Year
