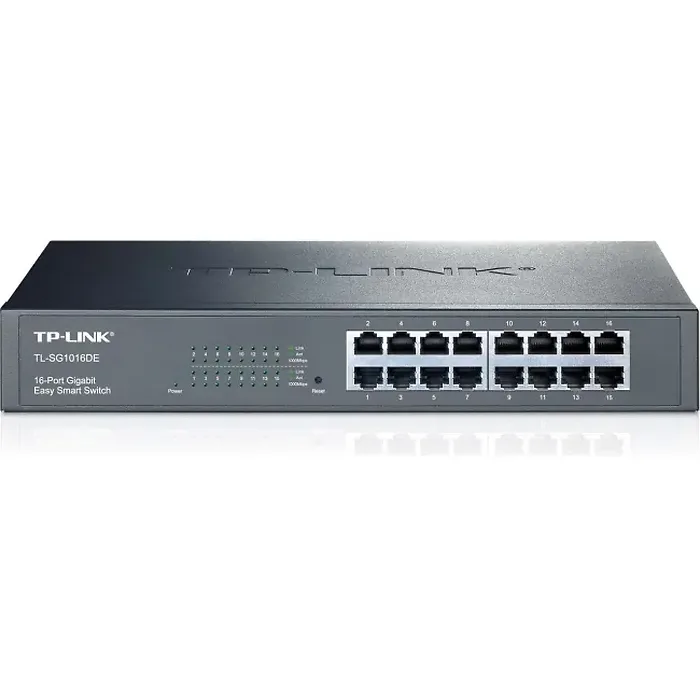

The TL-SG1016DE 16-Port Gigabit Easy Smart switch is an ideal upgrade from an unmanaged switch, designed for Small and Medium Business networks. Network administrators can effectively monitor traffic via Port Mirroring and Loop Prevention.

HARDWARE FEATURES
Standards and Protocols:IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
Interface:
16 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX

Network Media:10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)

Fan Quantity:Fanless

Power Supply:100-240VAC, 50/60Hz PERFORMANCE
Switching Capacity:32Gbps
MAC Address Table:8K
Packet Buffer Memory:512KB
Packet Forwarding Rate:23.8Mpps
Jumbo Frame:10240Bytes SOFTWARE FEATURES
Quality of Service:
Support Port Based/802.1p Based priority
Support 4 priority queues
Rate Limit
Storm Control

L2 Features:
IGMP Snooping
Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention

VLAN:
Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN
Transmission Method:Store-And-Forward OTHERS
Certification:FCC, CE, RoHS

Package Contents:
TL-SG1016DE
Power Cord
Installation Guide
Resource CD
Rackmount Kit
Rubber Feet

System Requirements:Microsoft Windows 98SE, NT, 2000, XP, Vista Windows 7 or Windows 8, MAC OS, NetWare, UNIX or Linux. Item Dimension (L"xW"xH"):
16 x 10 x 4

Weight:
5.45 lb

Warranty Information:
5-Year
