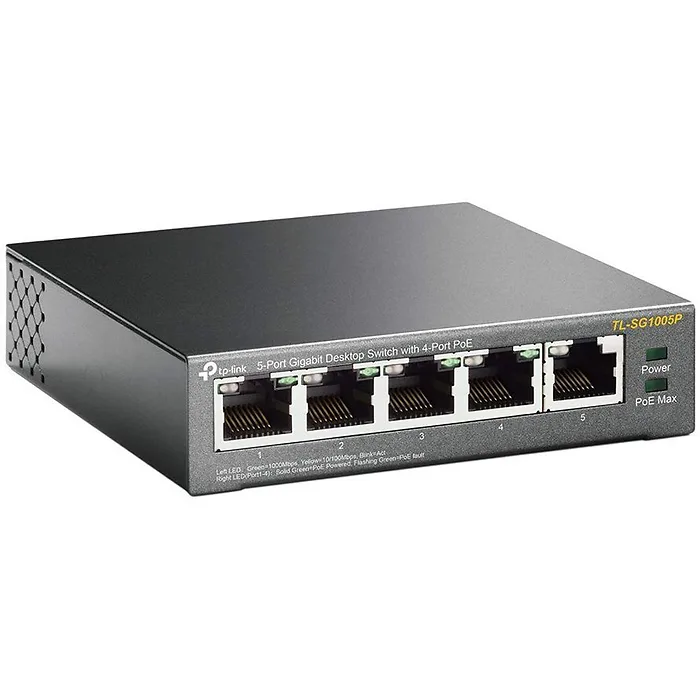

4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).

HARDWARE FEATURES
Interface:5 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media:10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
Fan Quantity:Fanless
Power Consumption:63.31W (max. with 56w PoE device connected)
4.26W (max. no PoE device connected)
External Power Supply:External Power Adapter(Output: 48VDC / 1.25A)
PoE Ports (RJ45):Standard: 802.3 af compliant
PoE Ports: Port1- Port4
Power Supply: 56W
Backbound Bandwidth:10Gbps
Mac Address Table:2K
SOFTWARE FEATURES
Advanced Features:Compatible With IEEE 802.3af Compliant PDs
Priority Function
Mac Address Auto-Learning And Auto-Aging
EEE802.3x Flow Control
802.1p/DSCP QoS
IGMP Snooping
Transfer Method:Store-And-Forward
OTHERS
Certification:FCC, CE, RoHS
Package Contents:TL-SG1005P, Power Adapter, Installation Guide
Consumption:4.26 watts (max. no PD connected)
63.31 watts (max. with 56w PD connected) Storage Humidity: 5%90%RH non-condensing
Item Dimension (L inchxW inchxH inch)
8 x 5 x 5 Weight
2.00lb Warranty Information
NA
