9 10/100 Mbps RJ45 ports8 PoE+ ports transfer data and power on individual cablesWorks with IEEE 802.3af/at compliant PDs Supports PoE Power up to 30 W for each PoE portSupports PoE Power up to 65 W for 8 PoE ports Up to 250 m data and power transmitting range under Extend Mode Priority Mode ensures high priority of ports 1 2 to guarantee the quality of sensitive applicationIsolation Mode allows one-click client traffic separation for higher security and performancePlug and play with no configuration required.
HARDWARE FEATURES
Interface
9 10/100 Mbps RJ45 Ports (8 10/100 Mbps 802.3af/at PoE+ ports)
AUTO Negotiation
AUTO MDI/MDIX
Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
Fan Quantity
Fanless
Physical Security Lock
Yes
External Power Supply
External Power Adapter (Output: 53.5VDC / 1.31A)
Packet Forwarding Rate
1.3392 Mpps
PoE Ports (RJ45)
Standard: 802.3 af/at compliant
PoE Ports: Ports 1-8
Power Supply: 65 W
Mac Address Table
2K
Jumbo Frame
2 KB
Switching Capacity
1.8 Gbps
Max Power Consumption
3.6 (220/50 Hz. no PD connected)
77.08 (220/50 Hz. with 65 W PD connected)
Max Heat Dissipation
12.28 BTU/h (no PD connected)
262.84 BTU/h (with 65 W PD connected)
SOFTWARE FEATURES
Transmission Method
Store-And-Forward
Advanced Functions
Compatible With IEEE 802.3af/at Compliant PDs
Extend Mode Button (Ports 1-4 and Ports 1-8, Up to 250 m PoE power supply and data transmission)
Priority Mode Button (Ports 1-2)
Isolation Mode Button (Ports 1-8)
Mac Address Auto-Learning and Auto-Aging
IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode
OTHERS
Certification
FCC, CE, RoHS
Package Contents

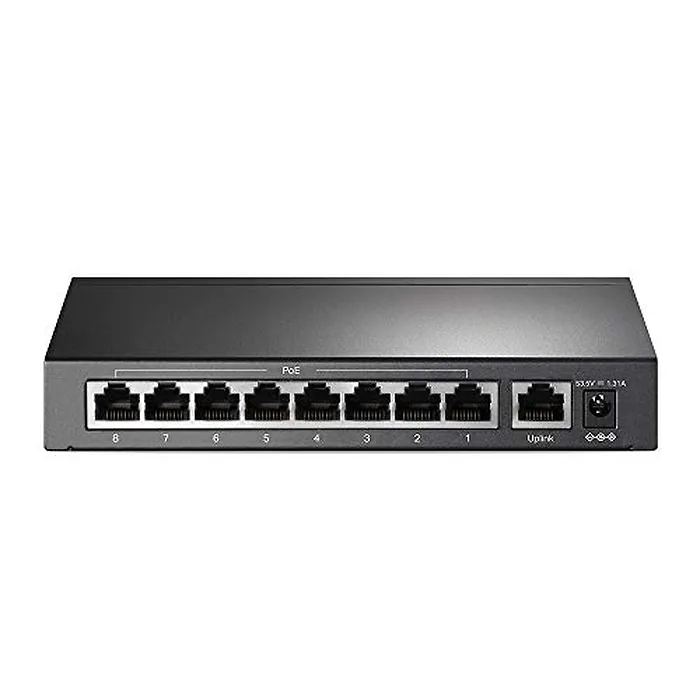

TL-SF1009P
Power Adapter
Installation Guide
Environment
Operating Temperature: 0-40 ^oC (32-104 ^oF)
Storage Temperature: -40-70 ^oC (-40-158 ^oF)
Operating Humidity: 10-90% RH non-condensing
Storage Humidity: 5-90% RH non-condensing
Item Dimension (L"x W"x H")
12 x 9 x 3
Weight
3.00 LB
Warranty Information
Limited Lifetime
