SUPPRESSOR 8 OUTLET-BLK
Package Includes
TLP808B Protect It 8-Outlet Surge Protector, Black Housing
Owners manual Output
Frequency Compatibility: 50 / 60 Hz
Output Receptacles: (8) 5-15R
Output (Watts): 1800
Circuit Breaker (amps): 15
Transformer Accommodation: Supports 3 large transformer plug accessories without covering remaining outlets, accepts up to 6 transformers total
Outlet Safety Covers: Includes built-in sliding outlet safety covers
Outlet Orientation: Single row of 5, plus a second row of 3 for transformer accommodation
Right-Angle Outlets: No Input
Nominal Input Voltage(s) Supported: 120V AC
Recommended Electrical Service: 120V (110-125V)
Input Connection Type: NEMA 5-15P
Input Plug Features: Space-saving right angle input plug
Input Cord Length (ft.): 8
Input Cord Gauge Type: 14 gauge, SJT
Voltage Compatibility (VAC): 120
Maximum Surge Amps: 84000
Right-Angle Plug: Yes User Interface, Alerts and Controls
Switches Combination AC circuit breaker and 2 position red illuminated on/off power switch

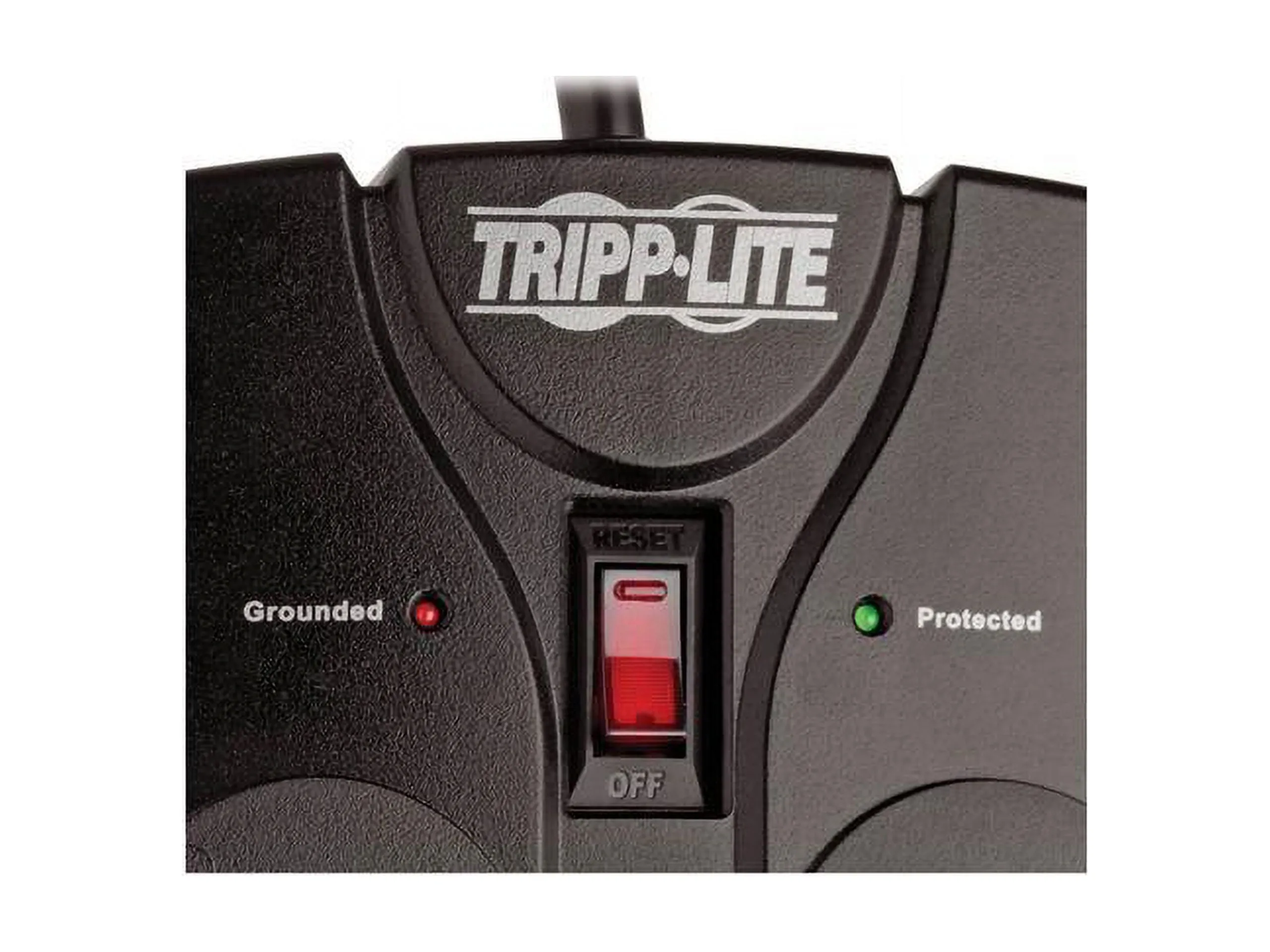

Diagnostic LED Details Built-in LEDs confirm suppressor "protection present" (green) and "grounded" (red) status Surge/ Noise Suppression
AC Suppression Joule Rating: 1440
AC Suppression Response Time: < 1 ns
Protection Modes: Includes full normal mode (H-N) and common mode (N-G / H-G) line surge suppression
Clamping Voltage (RMS): 150
UL1449 Let Through Rating: 330 L-G, 400 L-N, 400 N-G
EMI / RFI Filtering: Up to 40 dB Dataline Surge Suppression
Telephone/DSL Protection: No
Cable (Coax) Protection: No
Network (Ethernet) Protection: No Physical
Material of Construction: Plastic
Integrated Keyhole Mounting Tabs: Keyhole mounting tabs enable wall mounting
Housing Color: Black
Receptacle Color: BLACK
Color (AC Line Cord): Black
Outlets Measurement (Center to Center): Distance between standard outlets equal 28.5mm Distance between transformer outlets equal 57mm Certifications
UL1449 3rd Edition (AC Suppression): UL1449 3rd Edition
UL1363 (Power Tap): UL1363
cUL / CSA (Canada): cUL
Approvals: Exceeds IEEE 587 category A and B specifications Item Dimension (L"xW"xH")
12 x 8 x 2

Weight
2 lbs

Warranty Information
Lifetime limited warranty
