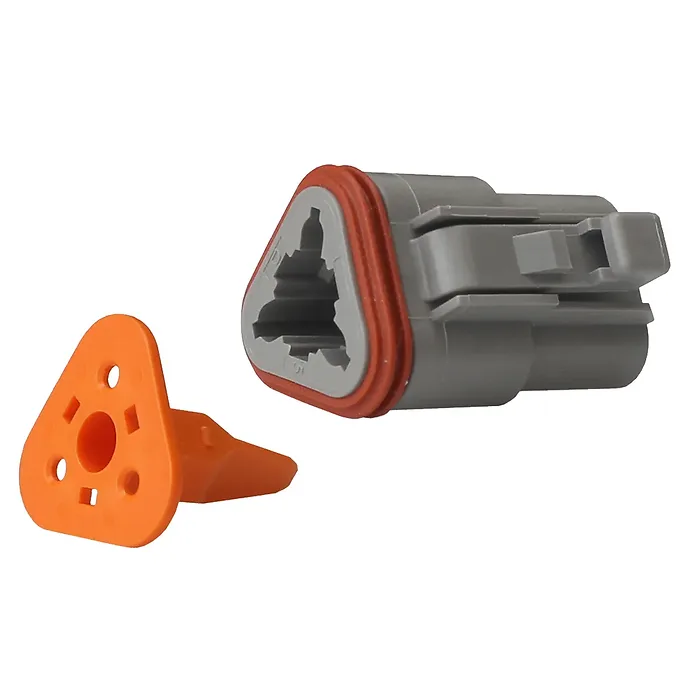

Deutsch DT Connector Plug & Wedge Lock Kit - 10 Pack

Protecting electrical connections is essential, and Deutsch Connectors are engineered for durability. The DT Kit connectors provide environmentally sealed connections, ensuring waterproofing and resistance to vibration and shock. Specifically designed for 20-14 AWG applications, these connectors allow the use of multiple size 16 contacts. The DT kits are user-friendly, making installation, connection, and disconnection a breeze. Note that this kit contains only the housing and wedge lock—pins and sockets are sold separately. For any inquiries, feel free to contact a Pacer expert today.

Features:

• Includes housing (10 pieces) and wedge lock (10 pieces)
• Compatible for 20-14 AWG wire applications

Applications:

• Wire-to-wire applications
• Enclosed connectors provide reliable performance in the field

Characteristics:

• Wedgelocks for contact alignment and retention
• Redundant silicone seals
• Hand-insertable and removable contacts

Compliances:

• Ingress Protection (IP) Level: IP67
• EU RoHS/ELV compliant
• Standard UL-94 recognized

Specifications:

• Number of Cavities: 3
• Cavity Style: Plug (socket)
• Package Size: 10
• Housing: Rectangular Plug, Plastic reinforced with glass fiber
• Contact Size: 16 (13 Amp)
• Wire Size: 20-14 AWG
• Operating Temperature: -55°C to 125°C

• Includes 10 housing pieces and 10 wedge locks
• Compatible with 20-14 AWG wiring
• Environmentally sealed for durability
• Redundant seals and hand-insertable contacts
• Designed for easy installation and removal
