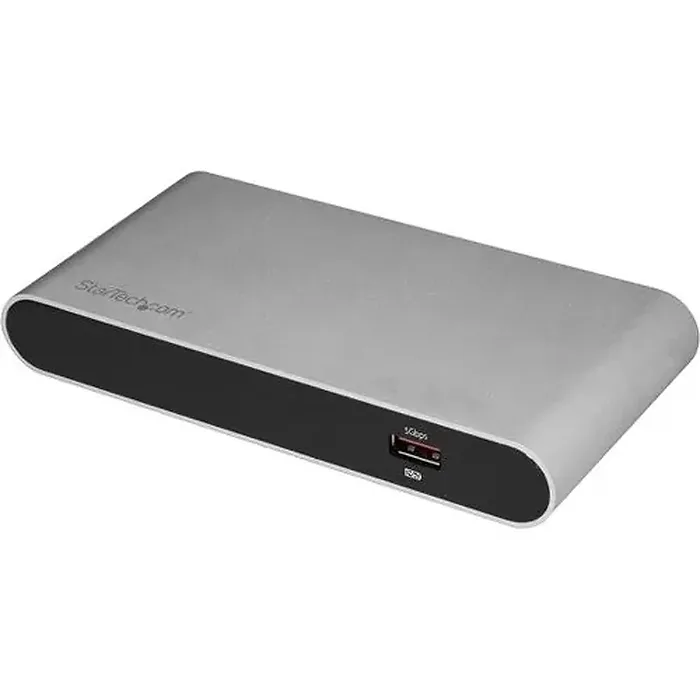

General InformationThis Thunderbolt 3 USB 3.1 multi-channel hub controller delivers maximum USB performance, adding four high-speed independent USB ports to your Thunderbolt 3 laptop. It provides three dedicated USB controllers and up to 20Gbps of aggregated bandwidth for USB devices, ideal for connecting bandwidth-demanding devices such as 3D scanners. The Thunderbolt 3 hub lets you access multiple USB devices at greater bandwidth and improved performance, and extend the life of your USB devices. Maximize USB Performance The high-speed USB hub provides two 10Gbps ports for connecting high-performance devices such as storage arrays, 3D scanners, audio-video devices, and external SSDs, with dedicated bandwidth for faster read/write access. The second Thunderbolt 3 port can be used to connect an additional USB-C device with up to 10G bandwidth. Dedicated Independent Port Bandwidth When only one USB port is in use, the full 10Gbps bandwidth is available to the device. Two additional USB-A ports provide 5Gbps of bandwidth to each device simultaneously, ideal for portable hard drives or flash drives. For added convenience, the front USB-A port supports both data and charging of your mobile device. Extend Your Workstation The Thunderbolt 3 hub features a second Thunderbolt 3 port to connect an additional display to your laptop (a USB-C video adapter may be required). The port can also be used to connect additional Thunderbolt devices, daisy-chaining up to six devices. The TB33A1C is backed by a StarTech.com 2-year warranty and free lifetime technical support.Technical InformationHost Interface: ThunderboltMedia & PerformanceUASP Support: YesInterfaces/PortsTotal Number of USB Ports: 5Number of USB 3.0 Ports: 2Number of USB 3.1 Ports: 2Number of Thunderbolt Ports: 2Physical CharacteristicsColor: SilverColor: BlackForm Factor: ExternalHeight: 0.9"Width: 2.9"Length: 5.8"Weight (Approximate): 7.10 ozMiscellaneousPackage Contents: Thunderbolt 3 to USB 3.1 Controller Adapter - 1x USB-C, 3x USB-A 1 x Thunderbolt 3 Cable 1 x Universal Power Adapter (NA/JP, UK, EU, ANZ) 1 x Quick-start Guide Platform Supported: MacPlatform Supported: PCEnvironmentally Friendly: YesEnvironmental Certification: RoHSEnvironmental Certification: WEEEEnvironmental Certification: REACHWarrantyLimited Warranty: 2 Year
Hardware
Bus Type:Thunderbolt 3
USB 3.1 Gen 2
USB 3.1 Gen 1
Chipset ID:Intel - Alpine Ridge JHL6540
ASMedia - ASM1042A
ASMedia - ASM1142
Fast-Charge Port(s):No
Industry Standards:Thunderbolt 3
USB Battery Charging Specification Rev. 1.2
Universal Serial Bus 3.1 Specifications Revision 1.0
Universal Serial Bus Specification Revision 2.0
Extensible Host Controller Interface Specification revision 1.1
USB Attached SCSI Protocol Revision 1.0
Ports:4
USB-C Device Port(s):Yes
USB-C Host Connection:No
Performance
Maximum Data Transfer Rate:Aggregate Bandwidth 20Gbit/s
Type and Rate:USB 3.1 Gen 2 - 10 Gbit/s
USB 3.1 Gen 1 - 5 Gbit/s
UASP Support:Yes
Connector(s)
Connector Type(s):2 - Thunderbolt^TM 3 USB-C (24-pin) Male
2 - USB Type-A (9 pin) USB 3.0 Female
1 - USB 3.1 USB Type-A (9 pin, Gen 2, 10 Gbps) Female
1 - USB Type-C (24 pin) USB 3.1 (10Gbps)
Software
OS Compatibility:Windows 7, 8, 8.1, 10
macOS 10.12 - 10.3
Special Notes / Requirements
Note:When connecting a display to the Thunderbolt 3 USB-C port, a USB-C video adapter might be required depending on the input of your display.
Secondary Thunderbolt 3 port can also be used to connect USB 3.1 (10Gbps) USB-Type C devices, such as USB 3.1 Storage Enclosure or Hubs. Backwards compatible with USB 3.1 Gen 1 (USB 3.0), and USB 2.0.
USB 3.1 Gen 1 is also known as USB 3.0 this connectivity standard offers speeds up to 5Gbps. USB 3.1 Gen 2 offers speeds up to 10Gbps.
System and Cable Requirements:Thunderbolt 3 equipped computer with a Thunderbolt 3 port.
Your laptops Thunderbolt 3 port must support USB Power Delivery 2.0 in order to power and charge your laptop.
Power
Center Tip Polarity:Positive
Input Current:1.8 A
Input Voltage:110V-240V AC
Output Current:3.25 A
Output Voltage:20V DC
Plug Type:N
Power Consumption (In Watts):65W
Power Delivery:15W
Power Source:AC Adapter Included
Environmental
Humidity:90% RH
Operating Temperature:0^oC to 40^oC (32^oF to 104^oF)
Storage Temperature:-20^oC to 70^oC (-4^oF to 158^oF)
Physical Characteristics
Cable Length:20.4 in (518 mm)
Color:Silver and Black
Enclosure Type:Aluminum
Form Factor:Desktop
Whats in the Box
Included in Package:1 - Thunderbolt 3 controller
1 - Thunderbolt 3 cable
1 - universal power adapter (NA/JP, UK, EU, ANZ)
1 - quick-start guide
Item Dimension (L inchxW inchxH inch)
12 x 8 x 5 Weight
3.22lb Warranty Information
2 Year Warranty
