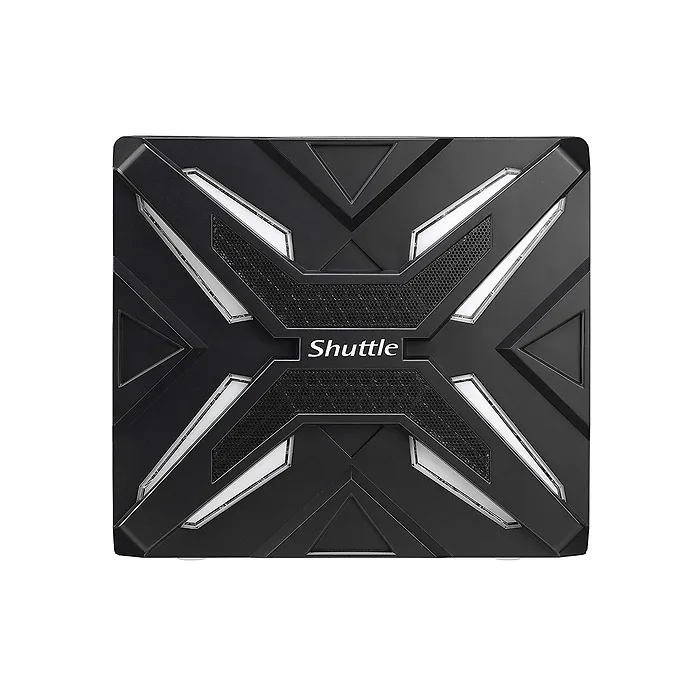

Shuttle, the leading mini-PC designer, introduces its new Gaming Mini-PC model, supports the 7th Gen Intel Core i7 processor and set to deliver the best performance for gaming and VR use.
FORM FACTOR
Shuttle Small Form Factor PROCESSOR
Support Kabylake/Skylake 95W Core i3/i5/i7 LGA 1151 CPU processor CHIPSET
Intel Z270 Express chipset MEMORY
(4) DDR4 2133/2400MHz support dual channel up to 64GB (16GB4) VIDEO OUTPUT
Integrated in CPU AUDIO
Realtek ALC662
5.1 channel High Definition Audio ETHERNET
Intel Chip i2112
10Mb/s,100Mb/s,1Gb/s operation
Support Wake-ON-LAN function STORAGE INTERFACE
SATA3 6.0Gb/s ONBOARD CONNECTORS
(2) 4 Pin fan connector
(4) SATA 6.0 connectors
(1)ATX main power (210)
(1) ATX 12V power (22)
FRONT PANEL
(2) USB 3.0 Port
(1) Line out jack
(1) Power button / Power LED
(1) Turbo button / Turbo LED
BACK PANEL
(4) USB 2.0 Port
(4) USB 3.0 Port (1) Line in jack
(1) Line out jack
(1) Audio MIC in
(1) HDMI
(2) DisplayPort
(2) LAN
(1) CMOS clear button
(3) Antenna hole DRIVE BAYS
(4) 3.5 HDD bay POWER
80 Plus 500W power supply
Input:100 - 240V AC ACCESSORIES
XPC Multi-Language quick guide
XPC DVD Driver
SATA cable x4(For HDD)
CPU Thermail Grease
Power cord
Screw package
EXPANSION SLOT
(1) PCI-E X16 slot
(1) PCI-E X4 slot
(2) M.2 2280 type M socket
(1) M.2 2230 type A,E key socket
OS SUPPORT
Windows 7 64bit (Skylake)
Windows 10 64bit Item Dimension (L inchxW inchxH inch)
18 x 11 x 9 Weight
11.00lb Warranty Information
3 Years
