Processor/Cache
CPU:
- Intel Xeon processor D-1587, 1.7GHz-2.3GHz, CPU TDP support 65W
- FCBGA 1667
Cores / Cache: 16 Cores, 32 Threads / 24MB System Memory
Memory Capacity:
- 4x DDR4 DIMM sockets
- Supports up to 128GB DDR4 ECC RDIMM
- Supports up to 64GB DDR4 ECC/non-ECC UDIMM
Memory Type: 2133/1866/1600MHz ECC DDR4 ECC RDIMM and ECC/Non-ECC UDIMM
DIMM Sizes: 32GB, 16GB, 8GB, 4GB
Memory Voltage: 1.2 V
Error Detection:
- Corrects single-bit errors
- Detects double-bit errors (using ECC memory) On-Board Devices
SATA: SoC controller for SATA3 (6Gbps) ports
Network Controllers:
- Dual 10G SFP+ from D-1500 SoC
- Quad 1GbE with Intel I350-AM4
- Dual 1GbE with Intel I210
IPMI
- IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
- Dedicated RJ45 IPMI LAN port
Graphics: BMC integrated ASPEED AST2400 Input / Output
SATA: 4x SATA3 (6Gbps) ports
LAN
- 2x 10G SFP+ ports
- 6x RJ45 Gigabit Ethernet LAN ports
- 1x RJ45 Dedicated IPMI LAN port
USB: 2x USB 3.0 ports (rear)
DOM: 1x SATA DOM (Disk on Module) power connector
VGA: 1x VGA Port
Others: TPM 1.2 header Chassis

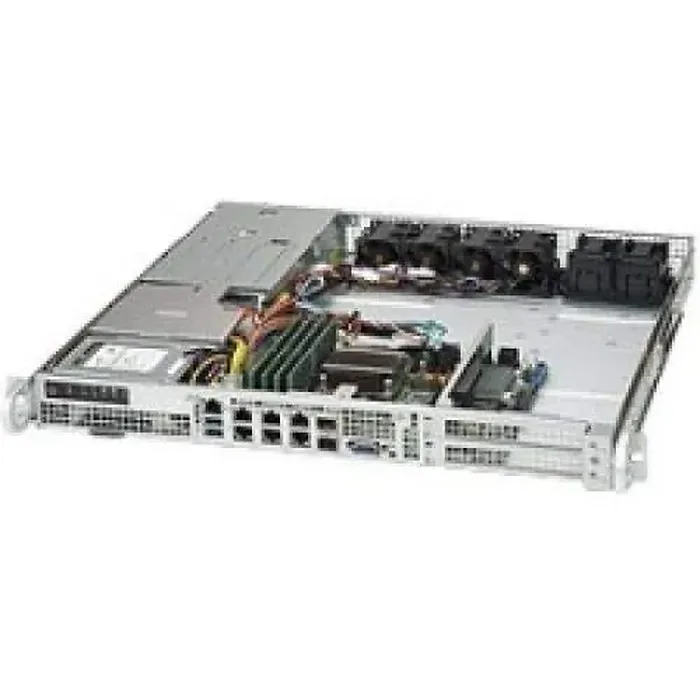

Form Factor: 1U Rackmount
Model: CSE-515-R407 Available Colors
Silver Front Panel
Buttons:
- Power On/Off button
- System Reset button
LEDs:
- Power LED
- Hard drive activity LED
- 2x Network activity LEDs
- System Overheat LED
- Information LED (temp., status) Expansion Slots
PCI-E:
- 1x PCIe 3.0 x8 slots
- M.2 PCIe 3.0 x4, M Key 2242/2280/22110
- Mini-PCIe with mSATA support Drive Bays
HDD: 4x 2.5 inch fixed drive bays System Cooling
Fans: Passive Heatsink, 40mm chassis fan AC/DC240V Input Redundant Power Supplies
400W 1U Redundant Power Supplies with PMbus
Total Output Power: 400W
Input:
- 100 - 240Vac / 6.0 - 3.0A / 50-60Hz
- 200 - 240Vdc / 3.4 - 3.2A (CCC Only)
+12V: Max: 33A / Min: 0.5A
+5V sb: Max: 3A / Min: 0A
Output Type: Gold Finger Connector Mating with Molex 45984-4343 Certification
Platinum Level Certified System BIOS
BIOS Type: 128Mb SPI Flash with AMI BIOS
BIOS Features
- PCI 3.0
- ACPI 5.0
- USB Keyboard support
- Hardware BIOS Virus protection
- SMBIOS 2.8
- UEFI 2.4
- RTC (Real Time Clock) Wakeup RoHS
RoHS Compliant Environmental Spec.
- Operating Temperature: 0^oC to 40^oC (32^oF to 104^oF)
- Non-operating Temperature: -40^oC to 70^oC (-40^oF to 158^oF)
- Operating Relative Humidity: 8% to 90% (non-condensing)
- Non-operating Relative Humidity: 5% to 95% (non-condensing) Item Dimension (L inchxW inchxH inch)
NA

Weight
12.00 lb

Warranty Information
1 Year
