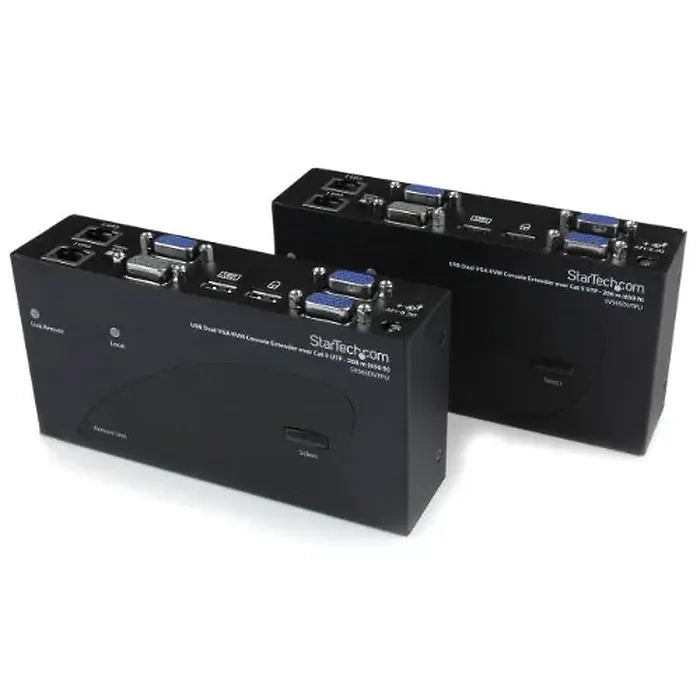

General InformationThe SV565DUTPU USB Dual VGA KVM Console Extender over CAT5 UTP lets you Operate a Dual VGA PC or KVM switch up to 650ft (200 m) away, as if it was installed locally, at high-definition 1920x1200 resolution. PC connection cables are included with this product for a ready to use solution. The dual VGA cat5 KVM extender supports easy to use hot-key and push button commands which allow you to switch between local and remote connected systems, while console connections at both ends of your setup provide easy access to all connected systems from either location. The hot-key commands also provide video adjustment controls for optimizing picture quality over varying distances. Extending over two standard Cat 5 (or better) cables gives you the ability to use existing infrastructure wiring to achieve remote access to your server or KVM switch. This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.Technical InformationConnectivity Technology: WiredKVM Technology: AnalogNumber of Computers Supported: 2Number of Local Users Supported: 2Maximum Operating Distance: 650 ftVideoGraphic Mode: WUXGAMaximum Video Resolution: 1920 x 1200Interfaces/PortsNetwork (RJ-45): YesUSB: YesVGA: YesNumber of VGA Ports: 8Number of Network (RJ-45) Ports: 4Number of USB Ports: 4Power DescriptionInput Voltage: 120 V ACInput Voltage: 230 V ACInput Voltage Range: 110 V AC - 240 V ACPower Consumption: 5.40 WPhysical CharacteristicsForm Factor: DesktopTransmitter Height: 1.60"Transmitter Width: 3.10"Transmitter Depth: 6.10"Receiver Height: 1.60"Receiver Width: 3.10"Receiver Depth: 6.10"Transmitter Weight (Approximate): 1.18 lbReceiver Weight (Approximate): 1.18 lbMiscellaneousPackage Contents: 1 x Local Unit 1 x Remote Unit 2 x 6 ft 2-in-1 USB VGA KVM Cables 8 x Rubber Feet 1 x Universal Power Adapter (NA/EU/UK/AU) 1 x Instruction Manual Environmentally Friendly: YesEnvironmental Certification: RoHSEnvironmental Certification: WEEEEnvironmental Certification: REACHTAA Compliant: YesWarrantyLimited Warranty: 3 Year
Hardware
Audio:No
KVM Ports:2
PC Interface:USB
PC Video Type:VGA
Multi-Monitor:Yes
Rack-Mountable:No
Cables Included:Yes Connector(s)
Console Interface(s):
2 - USB A (4 pin) Female
2 - VGA (15 pin High Density D-Sub) Female
Host Connectors:2 - VGA (15 pin High Density D-Sub) Female
Other Interface(s):2 - RJ-45 Female Performance
Max Transfer Distance:200 m (656 ft)
IP Control:No
Maximum Analog Resolutions:1920x1200
Supported Resolutions:1920x1200 at 650 ft (200m)

Physical Characteristics
Color:Black
Enclosure Type:Steel Power
Power Adapter Included:Yes
Input Voltage:110 - 240 AC
Input Current:0.2A
Output Voltage:9 DC
Output Current:0.6A
Center Tip Polarity:Positive
Plug Type:M Included in Package
1 - Local Unit
1 - Remote Unit
2 - 6 ft 2-in-1 USB VGA KVM cables
2 - Packs Rubber Feet
1 - Power Adapter
1 - Instruction Manual Item Dimension (L"xW"xH"):
14.37 x 9.25 x 2.95

Weight:
4.96 lb

Warranty Information:
3 Years
