General Information

---

Manufacturer:StarTech.com
Manufacturer Part Number:SV431HDU3A2
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com

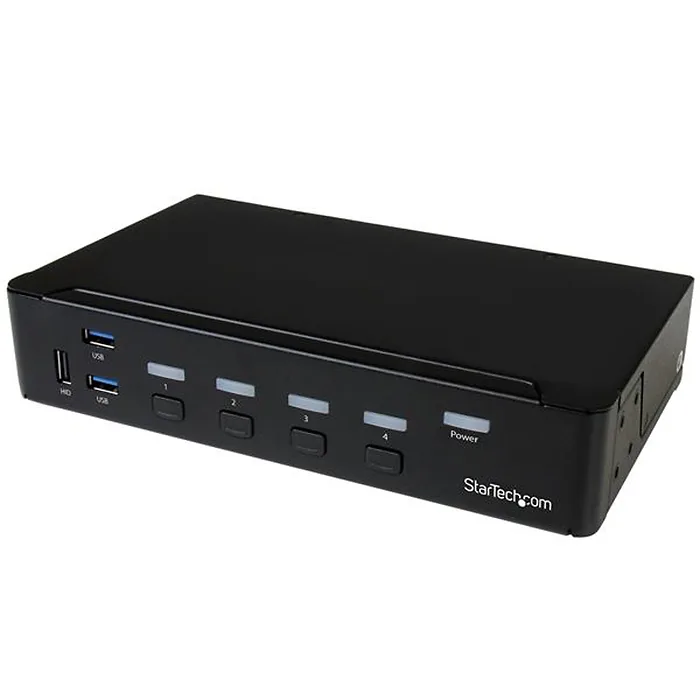

Product Name:4-Port HDMI KVM Switch - USB 3.0 - 1080p
Marketing Information:

This4-Port USB 3.0 HDMI® KVM switch lets you control four HDMIcomputers with a single monitor, keyboardand mouse. The KVM also features 3.5 mm audio and abuilt-in 3-port USB 3.0 hub.

Convenient and cost-effective USB 3.0 peripheral sharing

This KVM switch offers a built-in3-port USB 3.0 hub that's separate from your HID keyboard and mouse, so you can share USB peripheral devices between each connectedcomputer and avoid the expense of separate equipment.The USB 3.0hub automatically switches your connected USB devices to the selected computer, saving you the hassle ofdisconnectingand reconnecting peripherals.

With support for USB 3.0, you can achieve datatransferrates up to 5Gbps, toensureflawless performance for your USB peripherals - great for quickly transferring data to external USB 3.0 drives.

HD picture quality

Offering support for high-definition 1080p resolutions,this 4-port HDMI KVM switch has the ability to drive HDMI displayswith crystal clarity, making it ideal for graphical applications that require 1920 x 1080 video resolutions.

Complete multimedia control

The KVM switch features auxiliary 3.5 mm audio ports thatenableyou to share independent analog audio, from each of your connected computers,with yourdesktop speaker set. Independent audio,along with 1080pHDMIvideo, givesyou full multimediacontrol between different computers, making this KVM perfect for creative professional applications such as video and sound design orediting.

The SV431HDU3A2 is TAA compliant and backed by a StarTech.com 2-year warranty with free lifetime technical support.

Rackmount your KVM switch

If you'd like to mount this KVM switch to your server rack, StarTech.com offers a 1U Rackmount Bracket(sold separately) that turns this KVM into a rackmountable KVM.

Packaged Quantity:1
Product Type:KVM Switchbox

Technical Information

---

Number of Computers Supported:4
Number of Local Users Supported:1

Video

---

Maximum Video Resolution:1920 x 1080

Interfaces/Ports

---

USB:Yes
HDMI:Yes
Number of USB Ports:11
Number of HDMI Ports:5

Power Description

---

Input Voltage:

• 120 V AC
• 230 V AC

Input Voltage Range:100V AC to 240V AC

Physical Characteristics

---

Form Factor:

• Rack-mountable
• Desktop

Rack Height:1U
Height:1.7"
Width:5.1"
Depth:8.7"
Weight (Approximate):2.43 lb

Miscellaneous

---

Package Contents:

• 4-Port HDMI KVM Switch - USB 3.0 - 1080p
• 4 x Rubber Feet
• 1 x Universal Power Adapter (NA/EU/UK/AU)
• 1 x Quick Start Guide

Environmentally Friendly:Yes
Environmental Certification:

• RoHS
• WEEE
• REACH

Country of Origin:Taiwan
TAA Compliant:Yes

Warranty

---

Limited Warranty:2 Year
