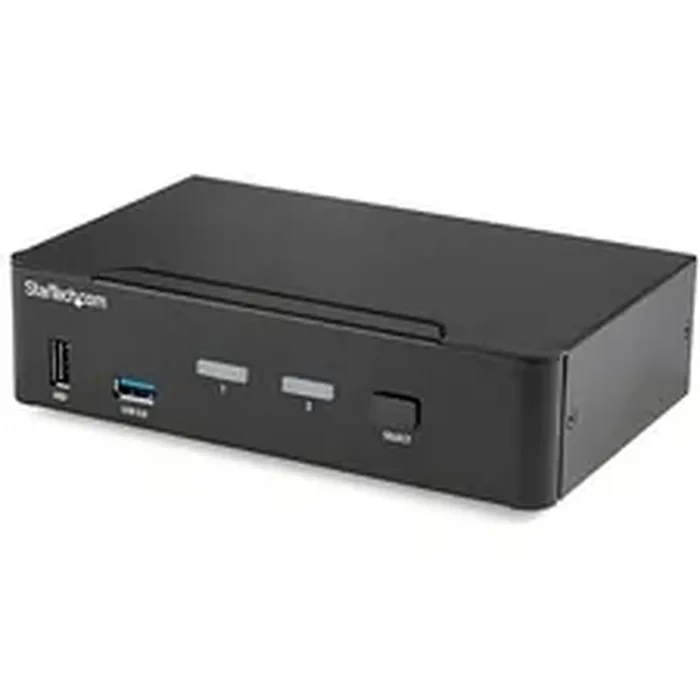

This 2-port KVM switch combines 4K (60Hz) digital display capabilities with control of two connected computers. 4K60 Picture and Full Audio Support The DisplayPort KVM switch supports resolutions up to 4K at 60Hz. It drives one large monitor at the full 4K resolution or, using an MST adapter, can drive various DisplayPort multi-display setups totaling 4K if you need to maximize viewing space. With support for digital audio (with supporting displays and sources) and separate 3.5 mm stereo audio, the DisplayPort 1.2 KVM switch delivers full audio compatibility. Integrated USB Hub The integrated USB 3.0 hub shares two peripherals (in addition to keyboard and mouse) among attached computers as if they were directly connected to your host computer, eliminating the cost of duplicate devices such as printers and scanners. Windows, Mac & Linux Compatible While supporting Windows, this DP KVM switch is also compatible with Mac and Linux operating systems. Easy to Operate The front-panel pushbuttons make it easy to switch between systems and activate the auto scan feature. The hotkey functionality makes accessing each system quickly, while a buzzer sound confirms the switch. StarTech.com offers a wide selection of high-quality KVM switches and KVM-related products to help you access your systems more efficiently without the expense and clutter of extra keyboards, mice, and monitors. This 2-port DisplayPort KVM switch is backed by a 2-year warranty and free lifetime technical support.
HARDWARE
Audio
Yes
Cables Included
No
Daisy-Chain
No
Industry Standards
USB 3.0
DisplayPort 1.2
HDCP 2.2
KVM Ports
2
Number of Monitors Supported
1
PC Interface
USB 3.0
PC Video Type
DisplayPort
PERFORMANCE
Audio Specifications
2-Channel Stereo
DVI Support
No
Hot-Key Selection
Yes
IP Control
No
Maximum Digital Resolutions
3840x2160 at 60Hz
Maximum Number of Users
1
MTBF
60000 hrs
On-Screen Display
No
Port Selection Support
Push Button and Hotkeys
Supported Resolutions
1024x768
1280x720 (High-definition 720p)
1920x1080 (High-definition 1080p)
1920x1200
2560x1440
2560x1600
3840x2160 (Ultra HD 4K)
Wide Screen Supported
Yes
CONNECTOR(S)
Console Interface(s)
4 - USB Type-A (4 pin HID Port) USB 1.1 Female
2 - USB Type-A (9 pin) USB 3.0 Female
1 - DisplayPort Female Output
1 - 3.5 mm Mini-Jack (3 Position) Female Output
Host Connectors
2 - DisplayPort Female Output
2 - 3.5 mm Mini-Jack (3 Position) Female Input
2 - USB Type-B (9 pin) USB 3.0 Female
