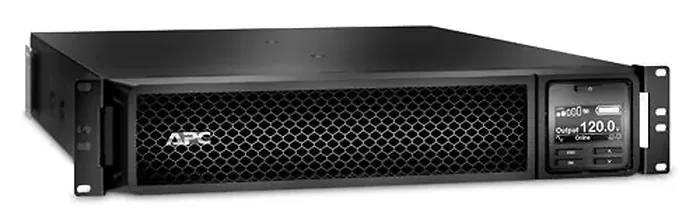

Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management (optional on models below 5 kVA). The Smart-UPS On-Line family provides customers with a reliable source of uninterruptible power even in demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.

Output

Output power capacity: 900 Watts / 1.0 kVA
Max Configurable Power (Watts): 900 Watts / 1.0 kVA
Nominal Output Voltage: 120V
Output Voltage Distortion: Less than 2%
Output Frequency (sync to mains): 50/60 Hz +/- 3 Hz
Load Crest Factor: 3 : 1
Topology: Double Conversion Online
Waveform type: Sine wave
Output Connections: (6) NEMA 5-15R (Battery Backup)
Bypass: Built-in Static Bypass

Input

Nominal Input Voltage: 120V
Input frequency: 40 - 70 Hz (auto sensing)
Input Connections: NEMA 5-15P
Cord Length: 6 ft (1.83 meters)
Input voltage range for main operations: 50-150 (40% Load), 80 - 150V
Number of Power Cords: 1

Batteries and Runtime

Battery type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte; leakproof
Included Battery Modules: 1
Typical recharge time: 3 hours
Nominal Battery Voltage: 48V
Replacement Battery: APCRBC155
Expected Battery Life (years): 3 - 5
RBC Quantity: 1
Extendable Run Time: 1
Extended Run Options: APC-Smart-UPS-SRT-1000VA-RM-120V-Network-Card

Communications and Management

Interface Port(s): RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, USB
Control panel: Multi-function LCD status and control console
Audible Alarm: Audible and visible alarms prioritized by severity
Emergency Power Off (EPO): Yes
Available SmartSlot Interface Quantity: 1

Surge Protection and Filtering

Surge energy rating: 432 Joules

Physical

Rack Height: 2U
Color: Black

Environmental

Operating Temperature: 32 - 104°F (0 - 40°C)
Operating Relative Humidity: 0 - 95% (non-condensing)
Operating Elevation: 0 - 10,000 ft (0 - 3,000 meters)
Storage Temperature: -20 - 50°C
Storage Relative Humidity: 0 - 95% (non-condensing)
Storage Elevation: 0 - 50,000 ft (0 - 15,000 meters)
Audible noise at 1 meter from surface of unit: 50.0 dBA
Online thermal dissipation: 317.0 BTU/hr
Protection Class: IP 20

Conformance

Approvals: CSA C22.2 No.107.3-05, FCC Part 15 Class A, UL 1778
Sustainable Offer Status:

• RoHS: Compliant
• REACH: Contains No SVHCs
• Proposition 65 Warning: Available in Documentation tab

Item Dimensions

Dimensions (L"xW"xH): 29 x 10 x 24 inches
Weight: 65.26 lbs

Warranty Information

Warranty: NA
