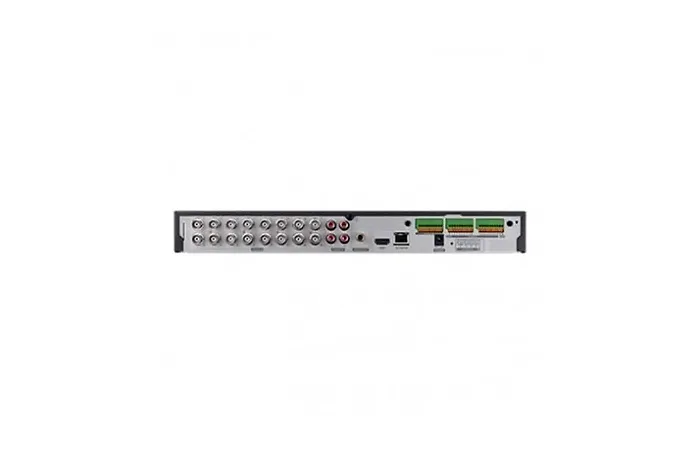

This 16-channel video encoder supports H.265, H.264, and MJPEG compression formats, ensuring high-quality video transmission. It is compatible with AHD, CVI, TVI, and CVBS signals, making it versatile for various applications.

The device can handle resolutions up to 5MP at 15fps or 30fps at 1080p, offering flexibility for different surveillance needs. It features an RS-485 interface for remote control and supports coaxial control with Pelco C protocol when using CVBS or ACP up-coax protocol with AHD.

Additionally, the encoder is compliant with ONVIF Profile S, enabling seamless integration into existing security systems.

Key outputs include one HDMI output capable of multi-image display up to 1920x1080, along with audio in/out support (16 audio inputs and 4 outputs).

• Supports H.265, H.264, MJPEG compression
• 16 channels with AHD, CVI, TVI, CVBS compatibility
• Up to 5MP@15fps or 30fps@1080p
• RS-485 interface for remote control
• Coaxial control with Pelco C and ACP up-coax protocol
• ONVIF Profile S compliant
• 1 HDMI output supporting multi-image display 1920x1080
• Audio input/output: 16 inputs and 4 outputs
