General Information

---

Manufacturer:Schneider Electric SA
Manufacturer Part Number:SMX3000LV
Manufacturer Website Address:http://www.schneider-electric.com
Brand Name:APC by Schneider Electric
Product Line:Smart-UPS

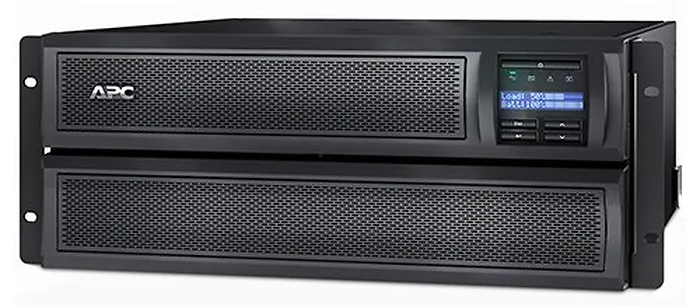

Product Name:Smart-UPS X 3000VA Rack/Tower LCD 100-127V
Marketing Information:

Over 20 million units sold - the UPS you can trust
APC award-winning Smart-UPS® is the most popular UPS in the world for servers, storage and network power protection. Trusted to protect critical data and equipment from power problems by supplying clean and reliable network-grade power. In addition to legendary reliability and manageability, Smart-UPS have extremely high efficiency at low, medium and high load levels making them ideal for today's multi-core or virtualized servers that have varying load consumption. Available in a variety of form factors (tower, rack mount, rack/tower convertible) there is a model for every application and budget. Rack mounted Smart-UPS are ideal for powering Blade or density optimized servers in a distributed power protection environment as the primary or redundant protection. Smart-UPS® models have long been considered the benchmark for all network and server UPS's. Smart-UPS feature a 16-segment LED display, extended range automatic voltage regulation (AVR), and pure sine wave output on battery. Additional manageability options are available through the Smart-Slot interface, which is an internal slot for the installation of optional accessory cards. The extended run Smart-UPS XL has the capability to add external battery packs to scale runtime from minutes to hours typically needed for converged voice and data network power protection. The entry level Smart-UPS SC is an economical choice for small and medium businesses looking to protect small switches, networking devices and point-of-sale (POS) equipment.

Product Type:Line-interactive UPS

Technical Information

---

Plug/Connector Type:NEMA L5-30P
Receptacle Type:

• NEMA 5-20R
• NEMA L5-30R
• NEMA 5-15R

Receptacle Detail:

• 3 x NEMA 5-20R
• 1 x NEMA L5-30R
• 6 x NEMA 5-15R

Emergency Power OFF:Yes
Transfer Time:4 ms

Power Description

---

Load Capacity:2880 VA/2700 W
Input Voltage:110 V AC
Output Voltage:120 V AC
Waveform Type:Sine Wave

Interfaces/Ports

---

USB:Yes
Total Number of Expansion Slots:1

Battery Information

---

Number of Batteries:1
Battery Characteristics:Spill-proof, Maintenance-free
Battery Chemistry:Lead Acid
Backup/Run Time (Full Load):6 Minute
Backup/Run Time (Half Load):18 Minute
Typical Battery Recharge Time:3 Hour
Hot Swappable:Yes

Physical Characteristics

---

Product Color:Black
Height:17"
Width:7"
Depth:19"
Rack Height:4U
Form Factor:Rack-mountable
Weight (Approximate):85.19 lb

Miscellaneous

---

Package Contents:

Smart-UPS X 3000VA Rack/Tower LCD 100-127V

CD with software

Documentation CD

Installation guide

Rack mounting brackets

Rack mounting hardware

Rack mounting support rails

Removable support feet

Smart UPS signalling RS-232 cable

USB cable

Certifications & Standards:

• BSMI
• CSA
• EN 50091-2
• EN 55022 Class A
• FCC Part 15 Class A
• NOM
• TUV
• UL 1778
• VCCI Class A
• UL 1449

Environmentally Friendly:Yes
Environmental Certification:

• RoHS
• REACH

Warranty

---

Limited Warranty:3 Year
