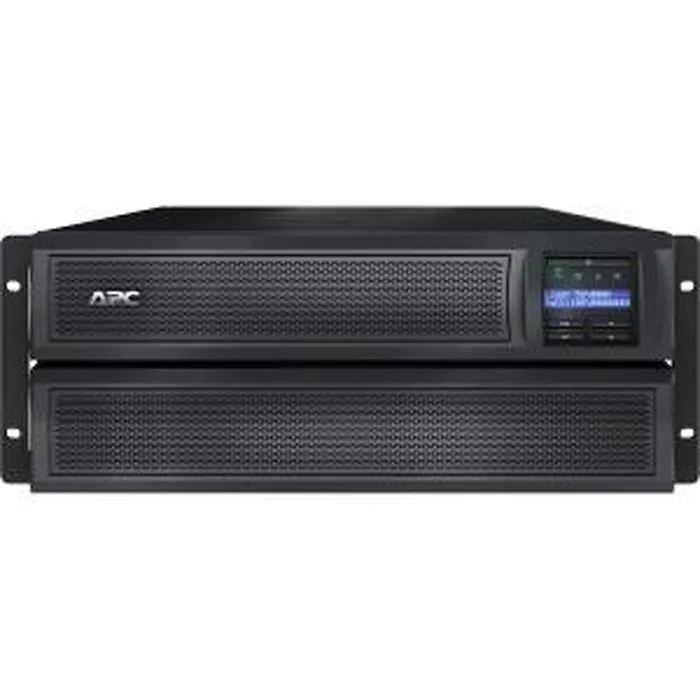

UPS (rack-mountable / external) - AC 120 V - 1800 Watt - 1920 VA - Ethernet 10/100 RS-232 USB - input: NEMA 5-20 - output connectors: 10 - 4U - black - with APC UPS Network Management Card AP9631
Output power capacity
1.8 KWatts / 1.92 kVA Max Configurable Power (Watts)
1.8 KWatts / 1.92 kVA Nominal Output Voltage
120V Output Voltage Distortion
Less than 5% Output Frequency (sync to mains)
50/60Hz +/- 3 Hz Topology
Line Interactive Waveform type
Sine wave Output Connections
(3) NEMA 5-20R (Battery Backup)
(1) NEMA L5-20R (Battery Backup)
(6) NEMA 5-15R (Battery Backup) Transfer Time
4ms typical : 8ms maximum Nominal Input Voltage
120V Input frequency
50/60 Hz +/- 3 Hz (auto sensing) Input Connections
NEMA 5-20P Cord Length
8ft ( 2.44meters ) Input voltage range for main operations
70 - 153V Input voltage adjustable range for mains operation
75 - 154V Number of Power Cords
1 Battery type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof Included Battery Modules
1 Typical recharge time
3hour(s) Replacement Battery
CURK143-01-04
