General Information

---

Manufacturer:Schneider Electric SA
Manufacturer Part Number:SMTL750RM2UC
Manufacturer Website Address:http://www.schneider-electric.com
Brand Name:APC by Schneider Electric
Product Line:Smart-UPS
Product Model:SMTL750RM2UC

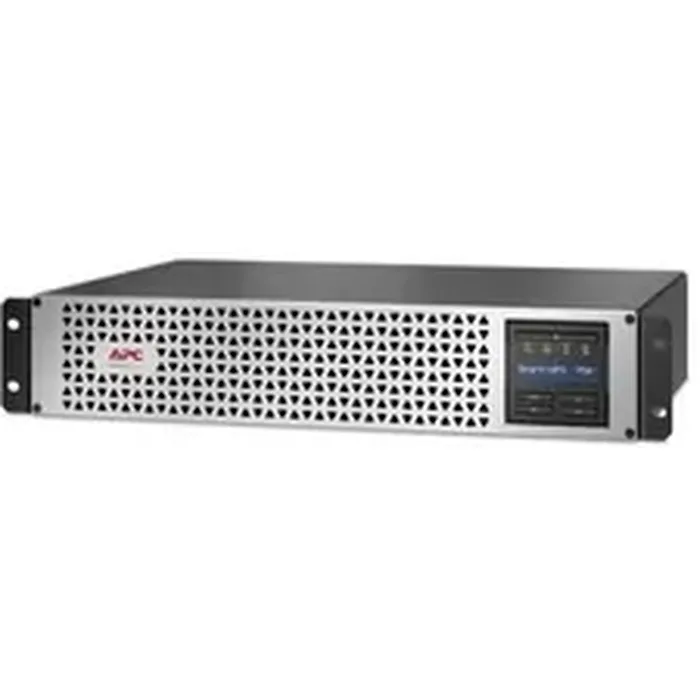

Product Name:Smart-UPS SMTL750RM2UC Rack-mountable 750VA UPS
Marketing Information:

Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.

Smart-UPS™ are trusted by millions of IT professionals throughout the world to protect equipment and critical data from costly interruptions by supplying reliable, network-grade power reliably and efficiently. Available in a variety of forms factors and classes (entry level, standard and extended run), there is a model for nearly every application and budget. Standard models are the most popular UPS in the world for business servers, storage and network devices and have long been considered the benchmark for reliability and manageability. Entry level Smart-UPS models are an economical choice for small and medium businesses looking to protect small networking devices, point-of-sale (POS) equipment and entry level servers. The extended run models accept external battery packs for long runtime to power critical servers, security and communication systems through outages that could last hours.

Product Type:Line-interactive UPS

Technical Information

---

AVR:Yes
Plug/Connector Type:NEMA 5-15P
Receptacle Type:NEMA 5-15R
Receptacle Detail:6 x NEMA 5-15R
Number of Battery & Surge Outlets:6
Overload Protection:Yes
Transfer Time:10 ms
Application/Usage:

• Server
• POS Terminal
• Network Device
• Switch
• Router
• Network Hub
• Security System
• Communication System

Power Description

---

Load Capacity:750 VA/600 W
Input Voltage:120 V AC
Input Voltage Range:82 V AC - 144 V AC
Output Voltage:120 V AC
Input Frequency:60 Hz
Output Frequency:60 Hz
Waveform Type:Sine Wave
Surge Energy Rating:680 J

Management

---

Alarm:

• On Battery
• Low Battery
• Configurable Delay

Controls/Indicators

---

Status Indicators:

LED status indicators: Quickly understand unit and power status with visual indicators.

Interfaces/Ports

---

Serial Port:Yes
Network (RJ-45):Yes
USB (HID Compliant) Port:Yes

Battery Information

---

Battery Chemistry:Lithium Ion (Li-Ion)
Backup/Run Time (Full Load):5.70 Minute
Backup/Run Time (Half Load):13.80 Minute
Typical Battery Recharge Time:3 Hour
Hot Swappable:Yes
Replaceable Battery:Yes

Environmental Conditions

---

Maximum Operating Temperature:104°F (40°C)
Storage Temperature:-40°F (-40°C) - 95°F (35°C)
Maximum Operating Elevation:10000 ft
Maximum Storage Elevation:25000 ft
Operating Humidity:0% - 95%
Storage Relative Humidity:0% - 95%
Sound Emission (A-Weighted):41 dB(A)
Thermal Dissipation:20.51 W

Physical Characteristics

---

Product Color:Black
Height:3.4"
Width:17.3"
Depth:12.5"
Rack Height:2U
Form Factor:Rack-mountable
Weight (Approximate):34 lb

Miscellaneous

---

Package Contents:

Smart-UPS SMTL750RM2UC Rack-mountable 750VA UPS

CD with software

Documentation CD

Installation guide

Rack mounting support rails

Smart UPS signalling RS-232 cable

USB cable

Software Included:SmartConnect
Environmentally Friendly:Yes
Environmental Certification:

• RoHS
• REACH
• WEEE

Country of Origin:Philippines

Warranty

---

Limited Warranty:5 Year
