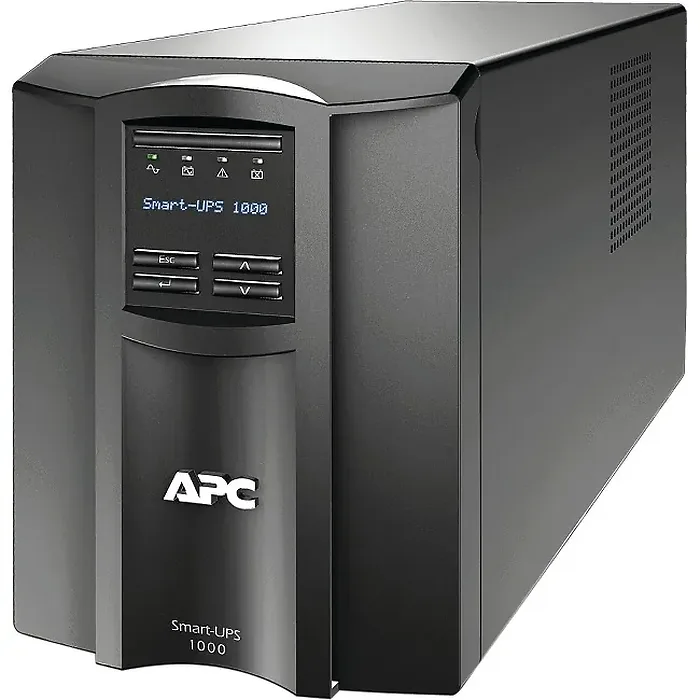

APC SMT1000C 1000VA Smart UPS with Smart Connect Remote Monitoring
Output
Output power capacity:700Watts / 1.0 kVA
Max Configurable Power (Watts):700Watts / 1.0 kVA
Nominal Output Voltage:120V
Output Voltage Distortion:Less than 5%
Output Frequency (sync to mains):50/60Hz +/- 3 Hz
Other Output Voltages :110, 127
Topology:Line Interactive
Waveform type:Sine wave
Output Connections (8) NEMA 5-15R (Battery Backup)
Transfer Time:6ms typical:10ms maximum
Input
Nominal Input Voltage:120V
Input frequency:50/60 Hz +/- 3 Hz (auto sensing)
Input Connections:NEMA 5-15P
Cord Length:6ft ( 1.83meters )
Input voltage range for main operations:82 - 144V
Input voltage adjustable range for mains operation:75 - 154V
Number of Power Cords:1
Other Input Voltages:110, 127
Batteries Runtime
Battery type:Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time:3hour(s)
Replacement Battery:RBC6
Expected Battery Life (years):3 5
RBC Quantity:1
Communications Management
Interface Port(s) :SmartSlot , USB
Control panel:Multi-function LCD status and control console
Audible Alarm:Alarm when on battery : distinctive low battery alarm : configurable delays
Emergency Power Off (EPO):
Available SmartSlot Interface Quantity:1
Surge Protection and Filtering
Surge energy rating:680Joules
Filtering: Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Item Dimension (L inchxW inchxH inch)
24 x 15 x 13 Weight
50.10lb Warranty Information
3 years repair or replace (excluding battery) and 2 year for battery
APC SMART-UPS 1000VA LCD 120V WITH SMARTCONNECT
