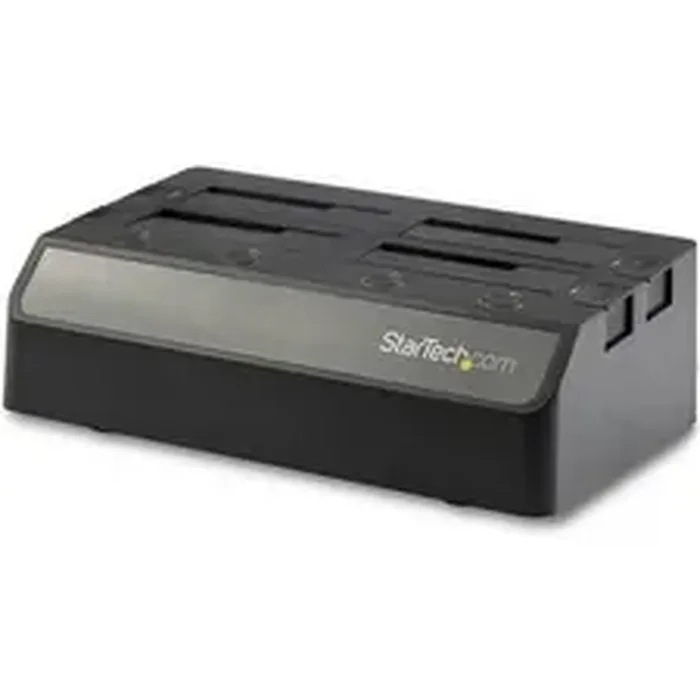

This 4-bay SATA HDD docking station lets you access up to four solid-state drives or hard drives simultaneously over USB 3.1 (10Gbps), and hot swap drives with ease. Ideal for IT professionals, the docking station provides large data capacity and fast file transfers, helping you manage your workflow more efficiently. When you’re managing a large number of drives, the HDD/SSD docking station saves you time. Quickly dock and swap your drives for disk imaging, data recovery from failing drives, data backups, or other tasks. The hard drive docking station also has SMART support, for accessing important drive information such as hours in use, number of power cycles, and disk health.
HARDWARE
Bus Type
USB 3.1 Gen 2
Chipset ID
VIA Labs - VL820
VIA Labs - VL715
Compatible Drive Types
SATA
Drive Installation
Removable
Drive Size
2.5in and 3.5in
Fan Bearing Type
Sleeve Bearing
Fan(s)
Yes
Fans
2 - 60 mm
Interface
USB 3.1 Gen 2
Number of Drives
4
PERFORMANCE
4Kn Support
Yes
Hot Swap Capability
Yes
Insertion Rating
10000
Max Drive Capacity
Tested up to 10TB
Maximum Data Transfer Rate
10Gbps
MTBF
30000 hours
Noise Level
19.04 dBA
S.M.A.R.T. Support
Yes
TRIM Support
Yes
Type and Rate
USB 3.1 Gen 2 - 10 Gbit/s
SATA III (6 Gbps)
UASP Support
Yes
CONNECTOR(S)
Drive Connectors
4 - 22 pin SATA Data Power Combo Receptacle
Host Connectors
1 - USB Type-C (24 pin) USB 3.1 (10Gbps) Female
SOFTWARE
OS Compatibility
OS independent No software or drivers required
INDICATORS
LED Indicators
4 - Power
4 - Activity
POWER
Input Current
2.0A
Input Voltage
100 to 240 AC
Output Current
6500mA
Output Voltage
12 DC
Plug Type
4-pin DIN
Power Consumption (In Watts)
78
Power Source
AC Adapter Included
ENVIRONMENTAL
Humidity
20% to 80% RH
Operating Temperature
5^oC to 35^oC (41^oF to 95^oF)
Storage Temperature
-20^oC to 50^oC (-4^oF to 122^oF)
PHYSICAL CHARACTERISTICS
Color
Black
Enclosure Type
Plastic
WHATS IN THE BOX
Included in Package
1 - docking station
1 - 3.3 ft (1 m) USB 3.1 (Type-C) cable
1 - 3.3 ft (1 m) USB 3.1 (Type-A) cable
1 - universal power adapter (NA/JP, UK, EU, ANZ)
1 - quick-start guide
Item Dimension (L"xW"xH")
16 x 8 x 11
Weight
11.00 LB
Warranty Information
2 Year Warranty
