General Information

---

Manufacturer:Schneider Electric SA
Manufacturer Part Number:SC450RMI1U
Manufacturer Website Address:http://www.schneider-electric.com
Brand Name:APC by Schneider Electric
Product Line:Smart-UPS
Product Series:SC

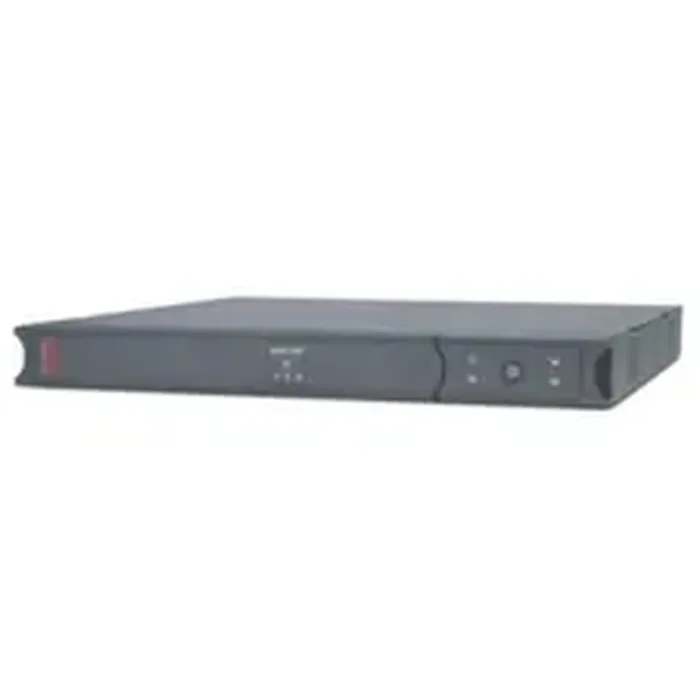

Product Name:Smart-UPS SC 450VA Rackmount/Tower
Marketing Information:

Smart-UPS SC 450VA Rackmount/Tower is the perfect protection for the IT resources of your growing business. Manageable and cost effective, APC Smart-UPS SC is designed for use by small and medium companies looking to protect entry level servers and networking equipment, providing both power and data-line protection.

Product Type:Line-interactive UPS

Technical Information

---

Plug/Connector Type:IEC 320-C14
Receptacle Type:IEC 60320 C13
Receptacle Detail:

• 4 x IEC 60320 C13
• 2

Dataline Protection:

• RJ-45
• RJ-11

Emergency Power OFF:Optional

Power Description

---

Load Capacity:450 VA/280 W
Input Voltage:220 V AC
Output Voltage:230 V AC
Waveform Type:Stepped Sine Wave
Surge Energy Rating:320 J

Management

---

Alarm:

• On Battery
• Low Battery

Battery Management:Intelligent battery management

Controls/Indicators

---

Status Indicators:

• On Line
• On Battery
• Replace Battery
• Overload

Interfaces/Ports

---

Serial Port:Yes

Battery Information

---

Battery Characteristics:Maintenance-free
Battery Chemistry:Lead Acid
Backup/Run Time (Full Load):5.90 Minute
Backup/Run Time (Half Load):19.40 Minute
Hot Swappable:Yes

Environmental Conditions

---

Maximum Operating Temperature:113°F (45°C)
Sound Emission (A-Weighted):38 dB(A)
Thermal Dissipation:11.14 W

Physical Characteristics

---

Product Color:Gray
Height:1.7"
Width:17"
Depth:15.1"
Rack Height:1U
Form Factor:Rack-mountable
Weight (Approximate):22.40 lb

Miscellaneous

---

Package Contents:

Smart-UPS SC 450VA Rackmount/Tower

CD with software

Rack mounting brackets

Smart UPS signalling RS-232 cable

User manual

Additional Information:

• Output Voltage Distortion: Less than 5% at full load
• Crest Factor: up to 5 : 1
• Replacement battery cartridge quantity: 1
• Units per Pallet: 24.00
• Front-access servicing
• Multiple mounting methods
• Boost and Trim Automatic Voltage Regulation (AVR)
• Power conditioning
• Cold-start capable

Certifications & Standards:

• UL 1449
• C-tick
• CE
• EN 50091-1
• EN 50091-2
• GOST
• PCBC
• VDE

Environmentally Friendly:Yes
Country of Origin:Philippines

Warranty

---

Limited Warranty:2 Year
