Scanstrut's SB-8-10 Junction Box is perfect for installations if you need to create a waterproof connection for multiple electrical cables.
Heavy-duty junction box manufactured from marine grade polypropylene and features 5 screw-down terminals.
Depending on the number of terminations required the terminal blocks can be individually fitted or blocked together. Supplied with 10 modular terminal blocks. Offering 10 terminations.
Cables push fit into the terminals and are secured with a sprung leaf retention system that does not damage the wire. The terminal can be removed for easy fitting of cables.
Features:
Provides 10 screw-down terminals.
Capacity for up to eight (8) cables to enter the box.
Watertight Installation - Cables are quickly routed into the box through an IP66 elastomeric membrane, guaranteeing protection against water ingress.

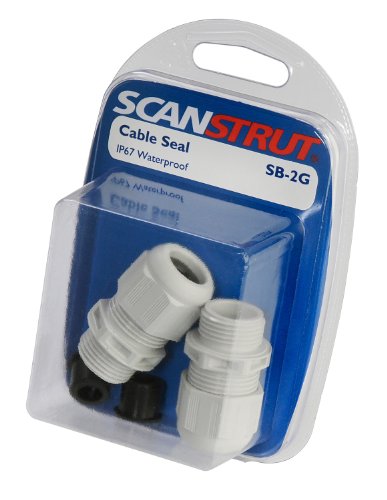

Upgradable to IP68 with use of SB-2G Cable Seals (sold separately)
Technical Specifications:
Maximum cable size (diameter) - .50" (12 mm)
Maximum wire size - 28/0.08 to 12/3-3
Dimensions (L x W x H) - 3.35" x 3.35" x 2" (85 x 85 x 50 mm)
Ten (10) terminal block w/600 V rating and 20 A
Color - Grey
Material - Marine grade polypropylene
In the Box:
Junction box w/ten (10) screw-down terminal block
Mounting hardware
Installation manual
*Sold as an Individual
Deluxe Junction Box
The fit and forget Junction Box is the perfect sailing accessory for anyone planning boat maintenance.
Providing secure, watertight connections for marine electrical cables onboard any boat, they are manufactured from a glass reinforced plastic and provide capacity for up to 8 cables to enter the box.
Features:
The Deluxe version includes 10 fast-fit terminals for a quicker install
Wateright Installation - Cables are quickly routed into the box through an IP66 elastomeric membrane, guaranteeing protection against water ingress.
Mounting Bracket Included - Boxes can be fitted directly to the required mounting surface. A surface mounting bracket is also included to allow removal of the box for inspection if necessary.
