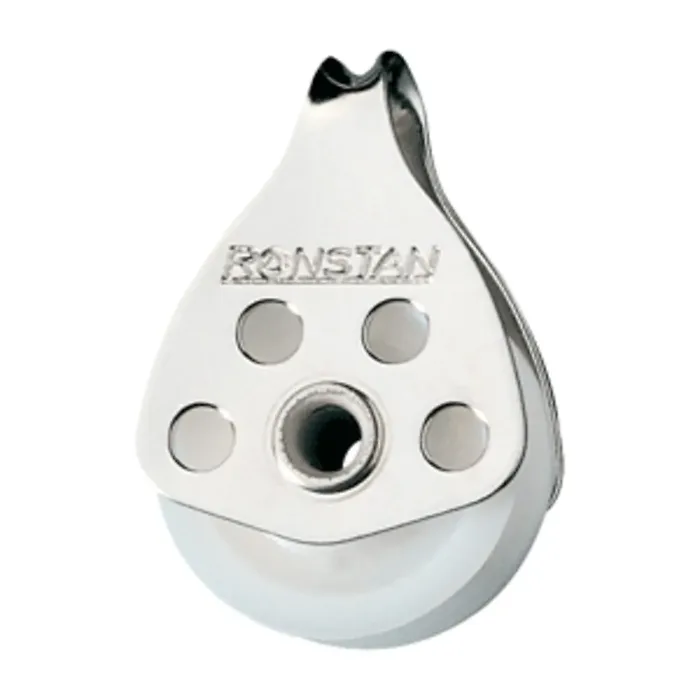

Series 30 Block - Single - Loop Top

Features:

• Maintenance free
• Economical
• Lightweight durable construction
• Stainless steel cheeks and Acetal sheaves ensure a long service life with virtually no maintenance
• Hollow rivets in the block heads can be fitted with shackles, which can also be used to add a becket for extra purchase

Applications:

• Vang, cunningham and trapeze retriever systems on dinghies
• Leech line tackles, bunk adjusters etc on larger yachts

Materials:

• UV Stabilized Acetal sheave
• Grade 316 stainless steel cheeks

Specifications:

Sheave Ø:29mm(1-1/8")

Max. Rope Ø:8mm(5/16")

M.W.L.:300kg(660lbs)

B. L.:600kg(1,320lbs)

Weight:20g(0.7oz)
