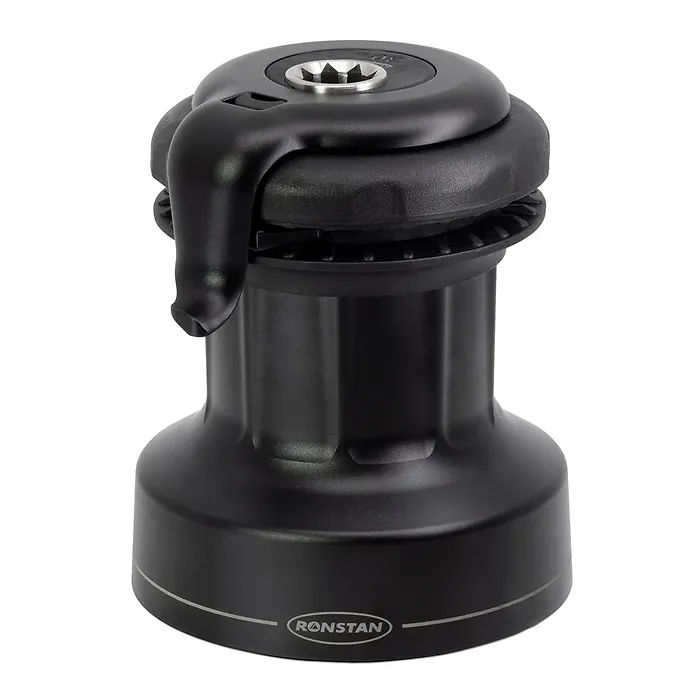

30QT Orbit Winch with QuickTrim Technology

The Ronstan Orbit Winches™ set a new benchmark in high-performance alloy winches, combining innovative design with proven manufacturing techniques. Weighing significantly less and featuring lower line entry heights, the Orbit Winches™ excel in their class.

Easy to service, they can be disassembled and maintained without tools. The machined aluminum drums incorporate Power Ribs™, known for their excellent line grip, smooth performance, and reduced rope wear, reminiscent of Andersen Stainless Steel Winches®.

Power Ribs™ Benefits

The unique gripping capability of Power Ribs™ minimizes the number of wraps needed around the drum, lessening the load on the self-tailer and optimizing line management while preventing riding turns. The non-abrasive drum surface prolongs the life of running rigging and offers seamless easing under high loads.

No Tools Needed

Users can fully disassemble and reassemble the winch without tools. To remove the drum, simply pull back the spring-loaded release latch and make a slight anti-clockwise turn to lift the self-tailing arm. The drum can then be taken off the winch's center stem.

During reassembly, an audible click confirms the self-tailing arm’s secure position within the bayonet notches on the center stem, which is lockable at eight different rotational stops spaced 45 degrees apart.

Orbit Winches™ models 30QT and 40QT feature the patented QuickTrim™ self-tailer, designed to enhance efficiency.

QuickTrim™ Feature

QuickTrim™ allows sailors to easily ease the line without having to remove the winch handle or disengage the line from the self-tailer. A simple anti-clockwise rotation of the self-tailing cover allows it to function like a sheave, facilitating confident grip and control while easing.

When finished, letting the top cover spring back locks the self-tailer for standard use.

• Lightweight machined aluminum drum
• Innovative Power Ribs™ ensure reliable grip for tensioning and easing
• Utilizes well-proven Andersen winch gearing
• No tools required for configuration and servicing
• Equipped with sprung self-tailing jaws for 6-10mm line
• Includes QuickTrim™ patent feature for fast sail trimming and smooth adjustments (for 30QT & 40QT models only)
