TS-X73 TVS-X73 TVS-X73E TS-X73U

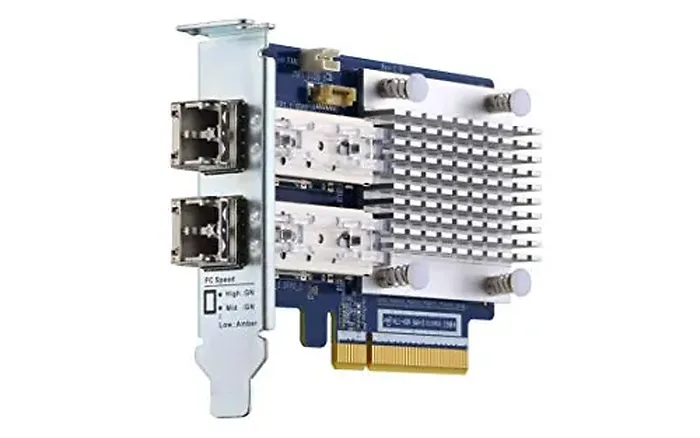

Dual-port 32Gb Gen 6 Fibre Channel expansion card with SFP+ transceivers
PCIe interface:
PCIe Gen3 x8
Transmission rates:
Fibre Channel 32/16/8 Gb/s (Up to 28.05 Gb/s per port)
Form factor:
Low-profile PCIe card10.68 x 6.89 cm (4.20 x 2.71 inches)
Supported NAS operating system:
QTS 4.4.1 (or later) for QNAP NAS with PCIe slots as a FC Target.
Bracket:
Low-profile bracket pre-installed, full-height and specialized (for selected QNAP NAS) brackets are bundled
Port and cable:

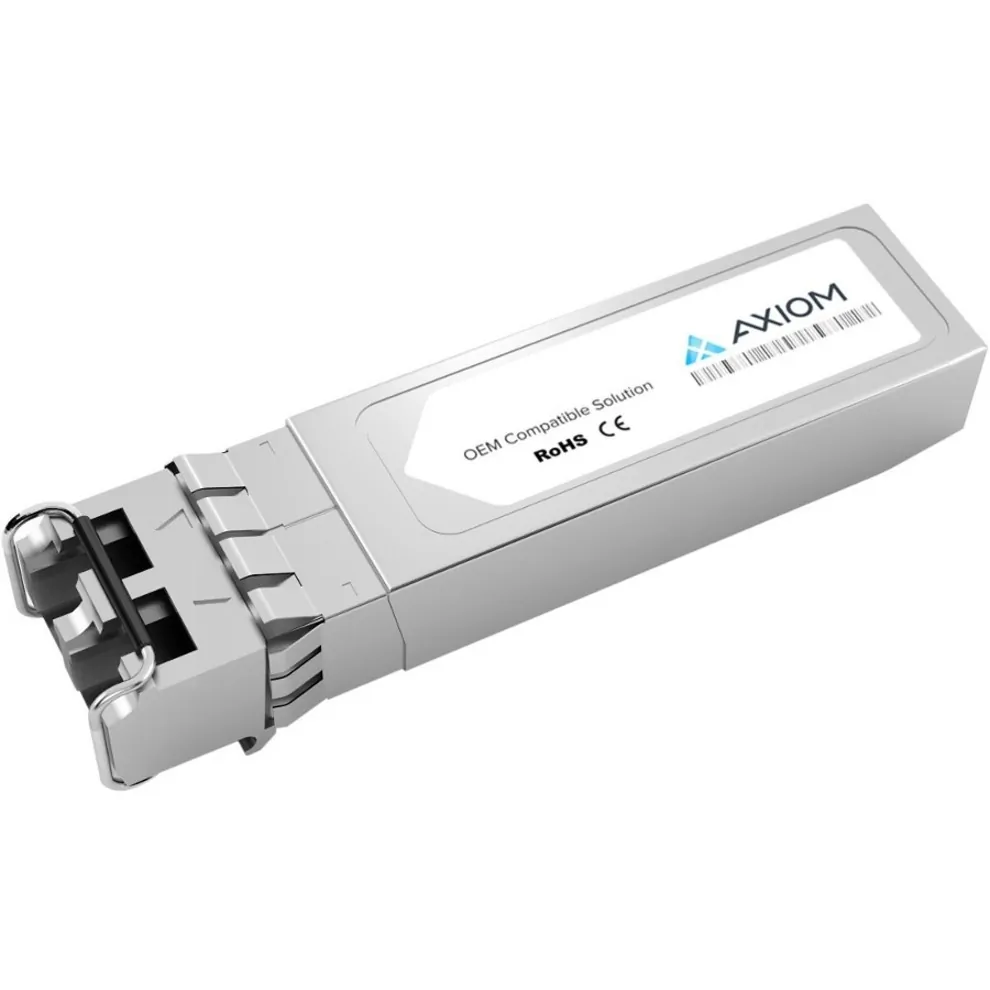

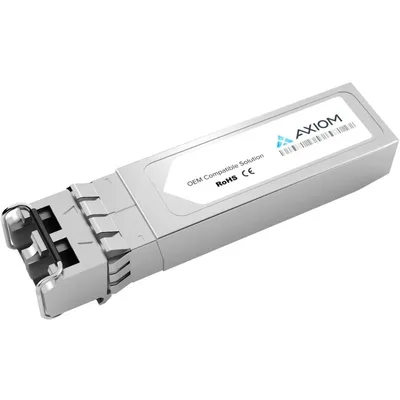

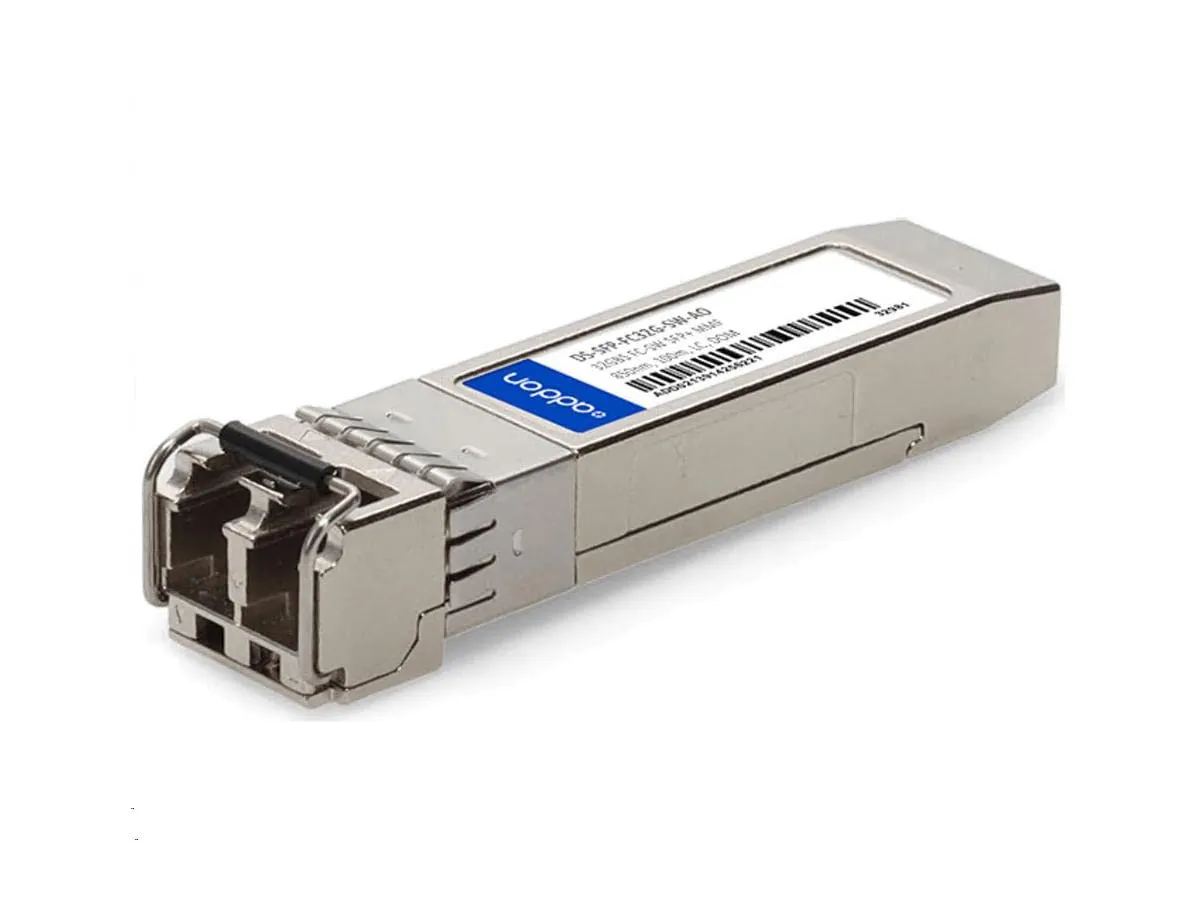

32Gb Transceiver (bundled with 2 x TRX-32GFCSFP-SR short wavelength SFP+ transceivers) and Fibre LC Cable (optical purchase)
Operating temperature:
0^oC to 45^oC (32^oF to 113^oF)
Storage temperature:
20^oC to 70^oC (4^oF to 158^oF)
Relative humidity:
5-95% RH non-condensing, wet bulb: 27^oC (80.6^oF)
Only QNAP certified transceivers are supported.
Note: QNAP Fibre Channel cards only support QNAP NAS with the QTS or QTS hero operating system. Windows, Linux, and other systems are not supported.
Item Dimension (L"xW"xH")
8 x 6 x 2
Weight
1.00 LB
Warranty Information
3 years
