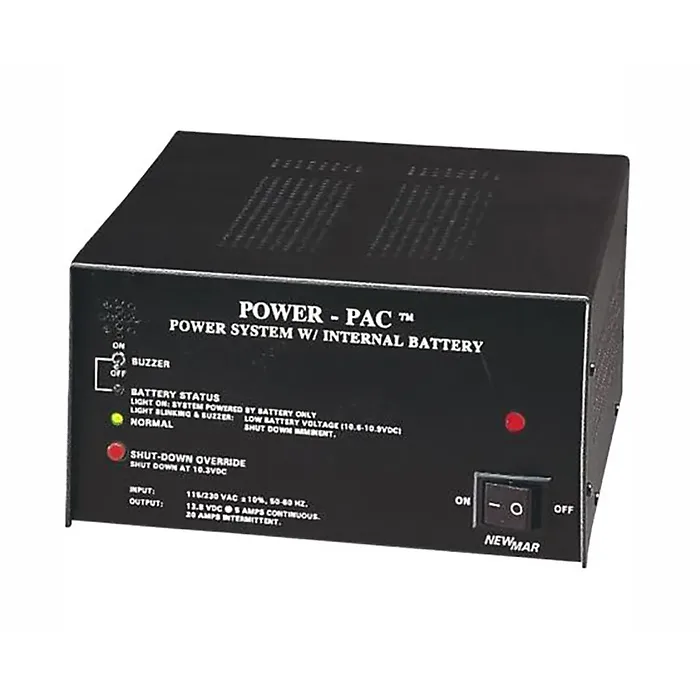

Power-Pac 7AH Marine Power Supply

The Newmar Power-Pac 7AH is a reliable 12V DC power supply designed for marine environments. It features built-in backup batteries that get charged during normal operations, ensuring continuous power to critical radios and navigation equipment during AC power outages. This power supply is perfect for commercial vessels, workboats, and yachts.

With its highly regulated, low-rising 10-amp output, the Power-Pac powers sensitive communications equipment without introducing RF or audio interference. It supports one or two built-in 7-amp/hour backup batteries, keeping them at peak charge when AC power is available. In the event of an AC power loss, the internal batteries activate automatically to provide uninterrupted DC power.

Key Features:

• Highly regulated, low ripple, noise-free 12-volt output
• Built-in, “on-line” stand-by battery for immediate backup power
• Expandable internal mounting for 14 A/H conversion
• Output “Normal” indicator LED
• Backup power only warning light
• Audible and visual low battery voltage indicators
• Low battery warning buzzer mute switch
• Automatic low battery voltage disconnect
• Low voltage disconnect override button
• Over-voltage protection
• Current limit protection
• Fused input/output
• Separate terminals for external battery charging
• Selectable 115/230 VAC, 50-60 Hz input

• Sealed Lead Acid, Deep-cycle batteries
• Lightweight design: 18 lbs. (8.2 kg)
• Compact size: 5.3 x 9.0 x 10.5 inches
• Operating temperature range: 0-40 degrees C
• Automatic recharging of batteries when AC is restored
• Extensive protection features for safety and durability
