Hardware
Bus Type
PCI Express
Card Type
Standard Profile (LP bracket incl.)
Chipset ID
4 x Renesas/NEC - PD720202
Industry Standards
USB 3.0 Specification Rev. 1.0
USB Battery Charging Specification Rev. 1.2 (Apple Mode only)
PCI Express Base Specification Rev. 2.0
Intel xHCI Specification Rev. 1.0
Interface
USB 3.0
Port Style
Integrated on Card
Ports
4 Connector(s)
Connector Type(s)
1 - PCI Express x4 Male
External Ports
4 - USB 3.0 A (9 pin SuperSpeed) Female
Internal Ports
1 - LP4 (4 pin Molex Large Drive Power) Female
Internal Ports
1 - SATA Power (15 pin) Plug Performance
Maximum Cable Length
9.8 ft 3 m
Maximum Data Transfer Rate
5Gbps per port - 20Gbps Total
Type and Rate
USB 3.0 - 5 Gbit/s
UASP Support
Yes Software
OS Compatibility
Windows 8 (32/64), 7 (32/64), Vista (32/64), XP (32/64)
Windows Server 2012, 2008 R2, 2003 (32/64)
Linux Kernel 2.6.31 or later System and Cable Requirements
Available PCI Express x4 or greater slot Included in Package

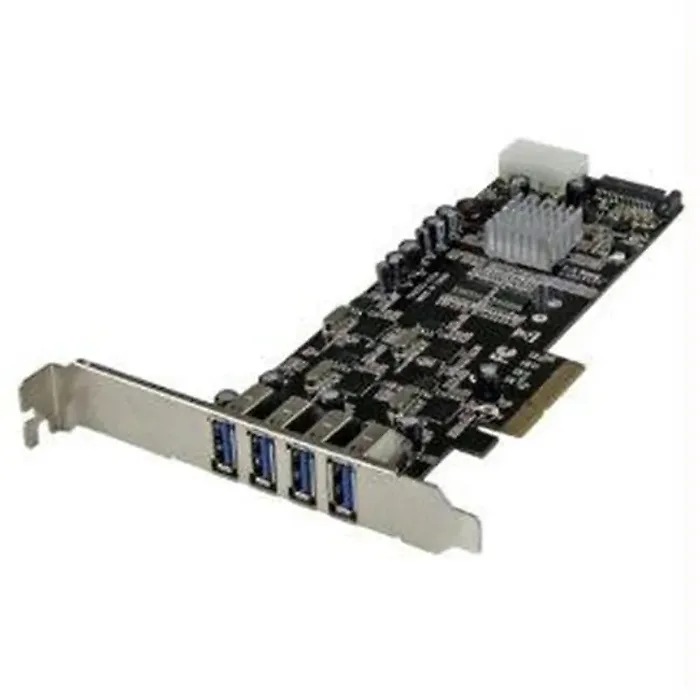

1 - 4 Port PCIe USB Card
1 - Low Profile Bracket
1 - Driver CD
1 - Instruction Manual Weight
1 lb
Item Dimension
6.57 x 5.51 x 1.10
Warranty Information
2 Year Warranty
