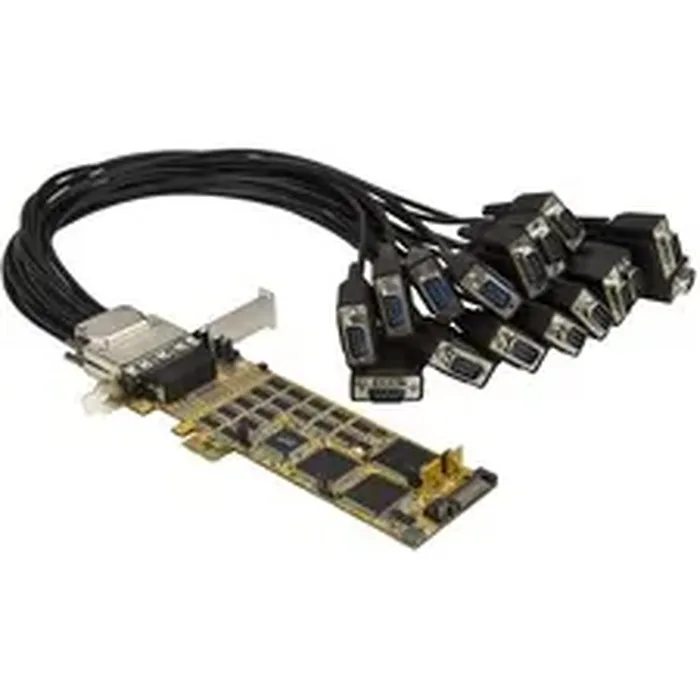

This PCI Express serial card adds 16 high-speed RS232 ports to your standard or low-profile desktop or server PC. This lets you maximize the number of available DB9 RS232 ports that are available for connecting your serial-based devices and equipment, while using only a single PCI Express (PCIe) slot. It’s the perfect solution for adding the serial ports you need, even if your desktop PC or server only has a limited number of PCIe expansion slots.
Hardware
Bus Type
PCI Express
Card Type
Low Profile (SP bracket incl.)
Chipset ID
ASMedia - ASM1083
SystemBase - SB4002A, SB16C1058
Industry Standards
PCI Express 1.1, PCI Power Management 1.2
Interface
Serial
Ports
16
Performance
Data Bits
5, 6, 7, 8
Max Baud Rate
921.6 Kbps
Serial Protocol
RS-232
Stop Bits
1, 1.5, 2
Connector(s)
Connector Type(s)
1 - PCI Express x1 Male
External Ports
16 - DB-9 (9 pin, D-Sub) Male
Internal Ports
1 - SP4 (4 pin, Small Drive Power) Male
Software
OS Compatibility
Windows 7, 8, 8.1, 10
Windows Server 2003, 2008 R2, 2012, 2012 R2, 2016
Linux 2.6x to 4.2x LTS Versions only
Environmental
Humidity
1090% RH
Operating Temperature
0^o to 55^oC (32^o to 131^oF)
Storage Temperature
-20^o to 75^oC (-4^o to 167^oF)
Physical Characteristics
Color
Yellow
Whats in the Box
Included in Package
1 - serial card
1 - low-profile bracket
2 - breakout cables
1 - quick-start guide Item Dimension (L inchxW inchxH inch)
12 x 8 x 3

Weight
2.65lb

Warranty Information
2 Year Warranty
