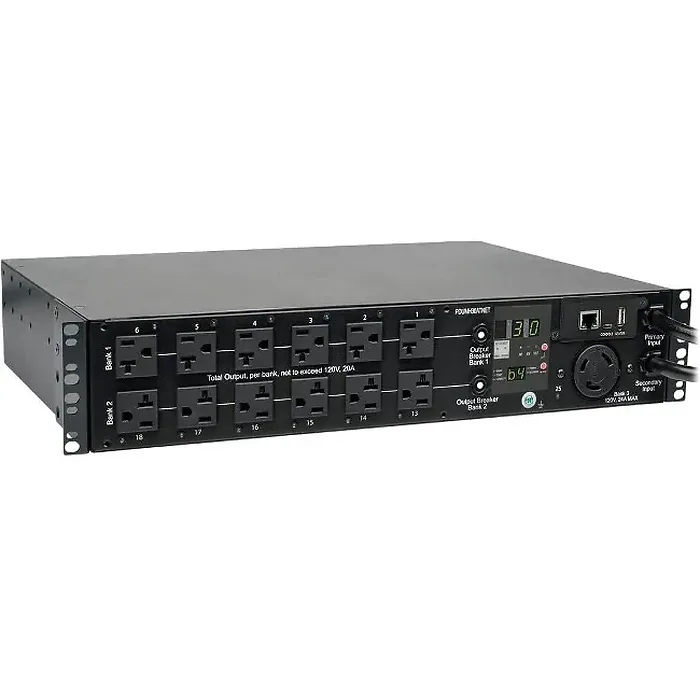

This Tripp Lite Switched PDUMH30ATNET includes separate L5-30P primary and secondary input cords and 25 switched output receptacles. It offers 30A 120V multi-outlet power distribution with dual input connections. The Tripp Lite PDU features a built-in network interface that enables remote SNMP/Web monitoring and control.
Model Type
Switched ATS/Auto Transfer Switches

PDU Type
Auto-Transfer Switch Switched

OUTPUT
Frequency compatibility:60 Hz
Output nominal voltage:120V
Outlet quantity / type:24 5-15/20R (switched), 1 L5-30R (switched) INPUT
PDU Input Voltage:100 120 127
Maximum Input Amps (A) :30
Input connection type:Two labelled L5-30P inputs support Primary and Secondary input connections
PDU Plug Type:NEMA L5-30P
Phase:Single-Phase LEDS ALARMS and SWITCHES
Switches:Switch near digital display enables monitoring output current for Bank 1, Bank 2, L5-30R outlet or all outputs combined
Front panel LEDs:25 LEDs display power on - off status for each outlet, plus 2 LEDs for power status on Primary and Secondary input connection.

PHYSICAL
Material of construction:Steel
Style:Rackmount
Form factors supported:2U rackmount
PDU Form Factor:Horizontal (1U, 2U, etc) COMMUNICATIONS
SNMP compatibility:Yes, via pre-installled network interface. Provides remote monitoring, outlet control, and automatic power management configurations.

SPECIAL FEATURES
Appearance:Black 2U rackmount steel chassis

CERTIFICATIONS
Certifications:Tested to UL 60950-1 (USA, Canada), Class A (Emissions), NOM (Mexico), RoHS Complaint Item Dimension (L"xW"xH"):
8 x 20.5 x 17

Weight:
16.90 lb
