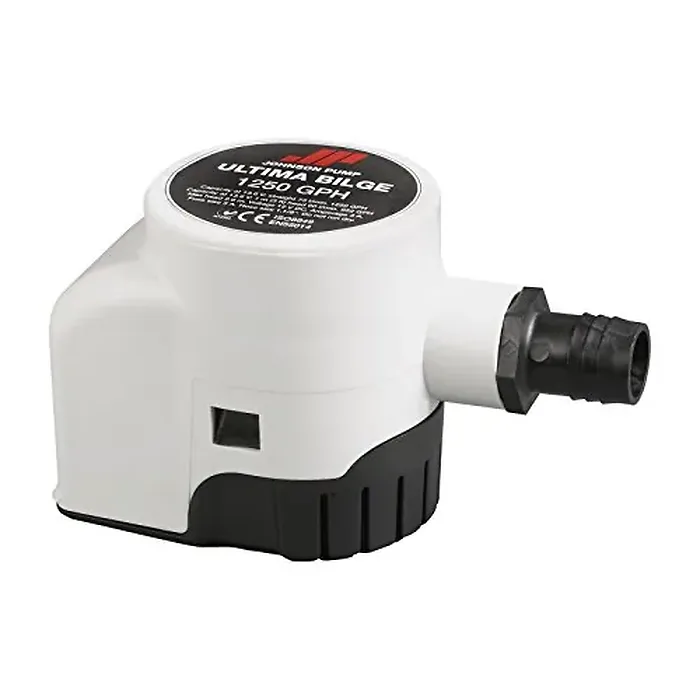

Ultima Bilge Pump
UltimaBilge Pumps are the latest addition to the Johnson Pump brand lineup. Integration of the Ultima "field effect" sensing technology into the bilge pump body creates a sleek, reliable and compact unit with integrated switch ready to install and run for years and years of unerring service. Available in 600-800-1000-1250 GPH versions. Voltage 12 V DC. For UltimaBilge 600 GPH-1000 GPH, we have easy-to-install Dura-Port discharge ports to eliminate stress cracking caused by over-tightened hose clamps. The pumps are delivered including both a straight and a 90 degree smooth elbow Dura-Port. For UltimaBilge 1250GPH we include threaded 1.1/4" & 1.1/8" discharge port.

All version are delivered with a removable check valve.

The Ultima Bilge pumps may be manually operated via the Johnson Pump bilge control panel.
CE-Approved

Features:

• Compact, all-in-one unit

• Integrated Ultima Switch sensing right into the pump body

• No Mercury

• Removable clip on basket design

• Removable impeller cover allows for easy clean out

• 3-wire device can be run in auto or manual override mode

• No tools needed for maintenance

• Extremely energy efficient

• Water-cooled motor for long service intervals

• Pump Body: ABS

• Shaft Seal: Lip Seal

• Shaft: Stainless steel (SS2343)

• Voltage: 12 V DC

• Capacity 3 ft (0.9 m) head (13.6 V): 51 l/min - 800 GPH

• Capacity straight (13.6 V): 79 l/min - 1250 GPH

• Amperage: 3 A

• Fuse Size: 5 A

• Connection: 1-1/8" and 1-1/4"

• Length:142 mm - 6"

• Width:82 mm - 3.2"

• Height:117 mm - 4.6"

• Weight:0.66 kg - 23.3 oz.

Ultima Bilge Pump
UltimaBilge Pumps are the latest addition to the Johnson Pump brand lineup. Integration of the Ultima field effect sensing technology into the bilge pump body creates a sleek, reliable and compact unit with integrated switch ready to install and run for years and years of unerring service. Available in 600-800-1000-1250 GPH versions. Voltage 12 V DC. For UltimaBilge 600 GPH-1000 GPH, we have easy-to-install Dura-Port discharge ports to eliminate stress cracking caused by over-tightened hose clamps. The pumps are delivered including both a straight and a 90 degree smooth elbow Dura-Port. For UltimaBilge 1250GPH we include threaded 1.1/4 & 1.1/8 discharge port.

All version are delivered with a removable check valve.

The Ultima Bilge pumps may be manually operated via the Johnson Pump bilge control panel.
CE-Approved

Features:

• Compact, all-in-one unit

• Integrated Ultima Switch sensing right into the pump body

• No Mercury

• Removable clip on basket design

• Removable impeller cover allows for easy clean out

• 3-wire device can be run in auto or manual override mode

• No tools needed for maintenance

• Extremely energy efficient

• Water-cooled motor for long service intervals

• Pump Body: ABS

• Shaft Seal: Lip Seal

• Shaft: Stainless steel (SS2343)

• Voltage: 12 V DC

• Capacity 3 ft (0.9 m) head (13.6 V): 51 l/min - 800 GPH

• Capacity straight (13.6 V): 79 l/min - 1250 GPH

• Amperage: 3 A

• Fuse Size: 5 A

• Connection: 1-1/8 and 1-1/4

• Length:142 mm - 6

• Width:82 mm - 3.2

• Height:117 mm - 4.6

• Weight:0.66 kg - 23.3 oz.
