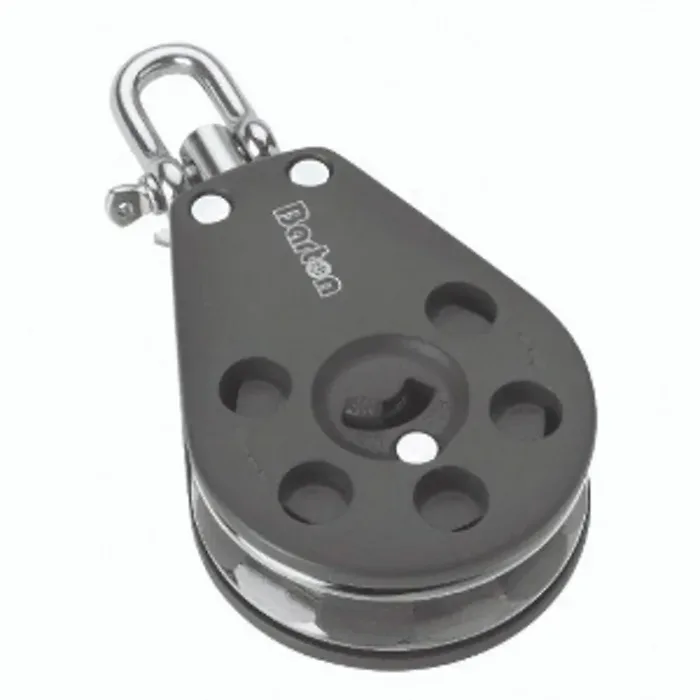

Ratchet Block - 55mm

The Barton Ratchet Block is designed to be used on mainsheet systems and spinnaker sheets on dinghies and keelboats and for small yachts up to 30 feet.

Combining high-performance engineering and contemporary design, the 2-3/16" (55 mm) ratchet block is the first in a planned range of sizes, it also offers a stainless steel lever that locks the swivel head if desired.

The new Ratchet Block allows sailors to easily handhold loaded lines and offer a balance between holding power and controlled easing.

Designed for low friction and longevity in harsh marine environments, the Ratchet Block body is manufactured from a composite of high-density nylon and glass fiber reinforced polymer with a high level of UV protection. Internal components are of marine grade 316 stainless steel and the 12 faced aluminum sheave is anodized in gunmetal silver

Technical Specifications:

• Safe Working Load - 661 lb (300 kg)
• Breaking Load - 2,646 lb (1,200 kg)
• Maximum Rope Diameter - 3/8" (10 mm)
• Weight - 4.8 oz (135 grams)

*Sold as an Individual

55mm Ratchet Block

The Barton Ratchet Block is designed to be used on mainsheet systems and spinnaker sheets on dinghies and keelboats, and for small yachts up to 30 feet.

Combining high performance engineering and contemporary design, the 55mm ratchet block is the first in a planned range of sizes, it also offers a stainless steel lever that locks the swivel head if desired.

The new Ratchet Block allows sailors to easily hand hold loaded lines and offer balance between holding power and controlled easing.

Designed for low friction and longevity in harsh marine environments, the Ratchet Block body is manufactured from a composite of high density nylon and glass fiber reinforced polymer with a high level of UV protection. Internal components are of marine grade 316 stainless steel and the 12 faced aluminium sheave is anodized in gunmetal silver.

Specifications:

• Safe Working Load: 300 kg/ 661 lbs
• Breaking Load: 1200 kg/ 2646 l
