The ME60 is a four channel 120 Watts RMS audio amplifier of delivering up to 30W RMS per channel. It has a compact, water resistant design that allows for flexible mounting possibilities, and makes it simple to expand the audio system capabilities for any installation.
Features:
To add additional loudspeakers to a current audio system
To provide amplification for a separate audio zone
Powers up to eight (8) 4ohm speakers
Internal distortion limiting circuits
Dedicated gain level control
External volume control with ON/OFF switch included
Rear channels switchable from full range to powered sub out
Specifications:
Number of Channels - 4
Speaker Impedance - 2-8 ohm
4 Ohm RMS Power - 4 x 20 W
2 Ohm RMS Power - 4 x 30 W
Frequency Response - 20Hz-40kHz
Dimensions (W x H x D) - 6.9" x 4.5" x 1.4" (175mm x 115mm x 35mm)
Volume Control Cable Length - 114" (290 cm)
*Sold as an Individual

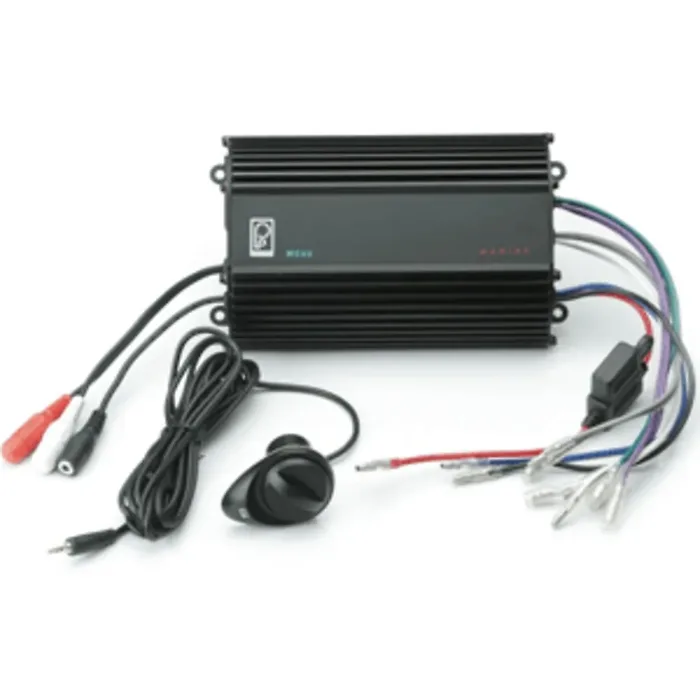

4 Channel,120watt, Audio Amplifier with volume control Part Number: ME60
The ME60 is a four channel 120 Watts RMS audio amplifier of delivering up to 30W RMS per channel. It has a compact, water resistant design that allows for flexible mounting possibilities, and makes it simple to expand the audio system capabilities for any installation.
Uses:
To add additional loudspeakers to a current audio system
To provide amplification for a separate audio zone
As a stand-alone system amplifier for any audio source
To power standard speakers or speakers and subwoofer
Features
Powers up to (8) 4ohm speakers
Internal distortion limiting circuits
Dedicated gain level control
External volume control with ON/OFF switch included
Water resistant design for marine use
Rear channels switchable from full range to powered sub out.
Specifications
Speaker Impedance: 2-8 ohm
Output Power (4 ohm load) 20 Watts RMS per Channel (50W Peak): (2 ohm load) 30 Watts RMS per Channel (70W Peak)
Frequency Response: 20Hz-40kHz
Low Pass Crossover: 18 - 245 Hz
Operating Voltage: 13.8V DC (10V-16V)
Maximum Current Draw (full power): 8-10amps
Dimensions (approx. w x h x d): 175mm x 115mm x 35mm 6.9 x 4.5 x 1.4
Installation Clearance: 250mm free space top/sides
