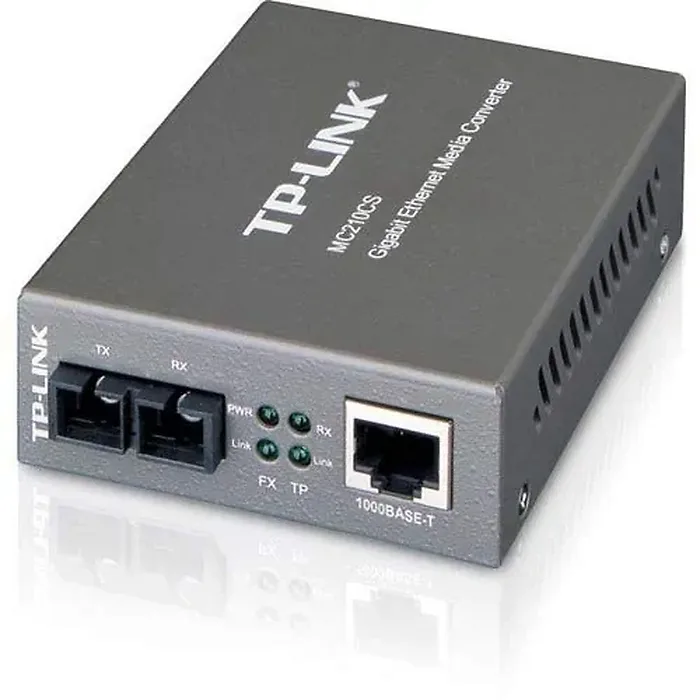

The MC210CS is a media converter designed to convert 1000BASE-LX/LH fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-LX/LH standards, the MC210CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC210CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data. Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK's 19" system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC210CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 15 kilometers(9.3 miles).
Standards and Protocols IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x Basic Function Full Duplex Flow Control (IEEE 802.3x) Extends fiber distance up to 15km Link Fault Passthrough and Far End Fault minimize the loss caused by link failure timely Ports 1 1000M SC port 1 1000M RJ45 port (Auto MDI/MDIX) Network Media 1000BASE-T : UTP category 5, 5e cable (maximum 100m), EIA/TIA-568 100 STP (maximum 100m) 1000BASE-FX : Single-mode Fiber LED Indicators PWR, LINK, RX Safety Emission FCC, CE Dimensions LxWxH:8x3x7 inch Environment Operating Temperature: 0C - 40C (32F - 104F)
