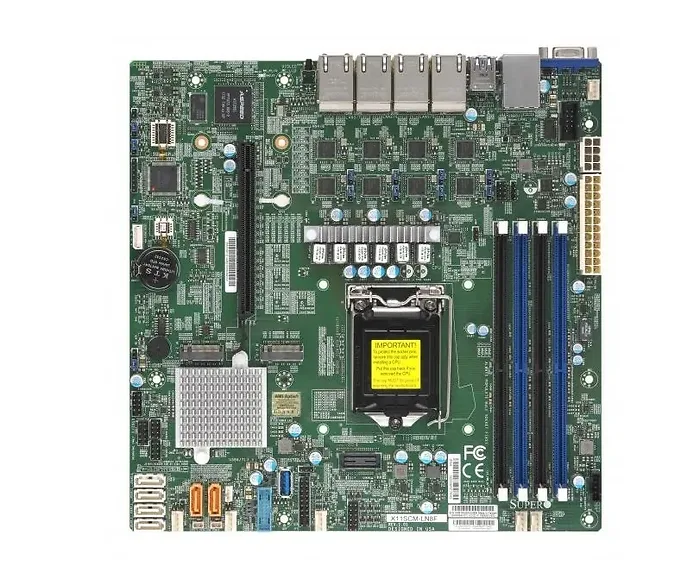

X11SCM-LN8F, 2x SATA Cables, I/O Shield
Physical Stats
Form Factor
microATX Processor/Cache
CPU
8th/9th Generation Intel Corei3/Pentium/Celeron Processor, Intel Xeon E-2100 Processor, Intel Xeon E-2200 Processor.
Single Socket LGA-1151 (Socket H4) supported, CPU TDP support Up to 95W TDP
Cores / Cache
8 cores, 16 threads
Note
BIOS version 1.0b or above is required to support Intel Xeon E-2200 and 9th Generation Intel Core i3/Pentium/Celeron Processors System Memory
Memory Capacity
Up to 128GB Unbuffered ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots
Memory Type
2666/2400/2133MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
4GB, 8GB, 16GB, 32GB
Memory Voltage
1.2V
Error Detection
Corrects single-bit errors On-Board Devices
Chipset
Intel C246
SATA
Intel C246 controller for 6 SATA3 (6 Gbps) ports RAID 0,1,5,10
IPMI
ASPEED AST2500
Network Controllers
8 LAN with Intel Ethernet Controller I210-AT
Graphics
Aspeed AST2500 BMC Input / Output
SATA
6 SATA3 (6Gbps) port
LAN
8 RJ45 Gigabit Ethernet LAN ports
USB
4 USB 2.0 ports (2 rear + 2 via headers)
5 USB 3.1 Gen1 ports(2 rears, 2 via headers, 1 Type A)
Video Output
1 VGA port
Serial Port / Header
1 COM Port (1 header)
TPM
1 TPM Header Expansion Slots
PCI-E
1 PCI-E 3.0 x16
M.2
M.2 Interface: 1 SATA/PCI-E 3.0 x4 and 1 PCI-E 3.0 x4
Form Factor: 2280/22110
Key: M-Key
Double Height Connector System BIOS
BIOS Type
UEFI 256Mb
BIOS Features
ACPI 6.0
SMBIOS 2.7
Plug and Play (PnP)
RTC (Real Time Clock) Wakeup
UEFI 2.7
USB Keyboard support
PCI 3.0 Management
Software
Intel Node Manager, IPMI2.0, NMI, SPM, SSM, SUM, SuperDoctor 5, Watchdog
System Mangement Software
IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
Power Configurations
ACPI Power Management PC Health Monitoring
Voltage
+12V, +3.3V, +5V, +5V standby, 6 -fan status, Chassis intrusion header, Chipset Voltage, Memory Voltages, Monitors CPU voltages, Supports system management utility, System level control, VBAT
FAN
6x 4-pin fan headers (up to 6 fans), 6 fans with tachometer status monitoring, Fan speed control, Overheat LED indication, Thermal control tachometer fan connectors
Temperature
Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Monitor 2 (TM2) support, PECI
LED
UID/Remote UID, CPU / System Overheat LED
Other Features
ACPI power management, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Dual Cooling Zones, M.2 NGFF connector, Node Manager Support, UID, WOL Operating Environment
Operating Temperature Range
0^oC 50^oC (32^oF 122^oF)
Non-Operating Temperature Range
-40^oC 70^oC (-40^oF 158^oF)
Operating Relative Humidity Range
8% - 90% (non-condensing)
Non-Operating Relative Humidity Range
5% - 95% (non-condensing) Item Dimension (L"xW"xH")
NA

Weight
2 lbs

Warranty Information
1 Year
