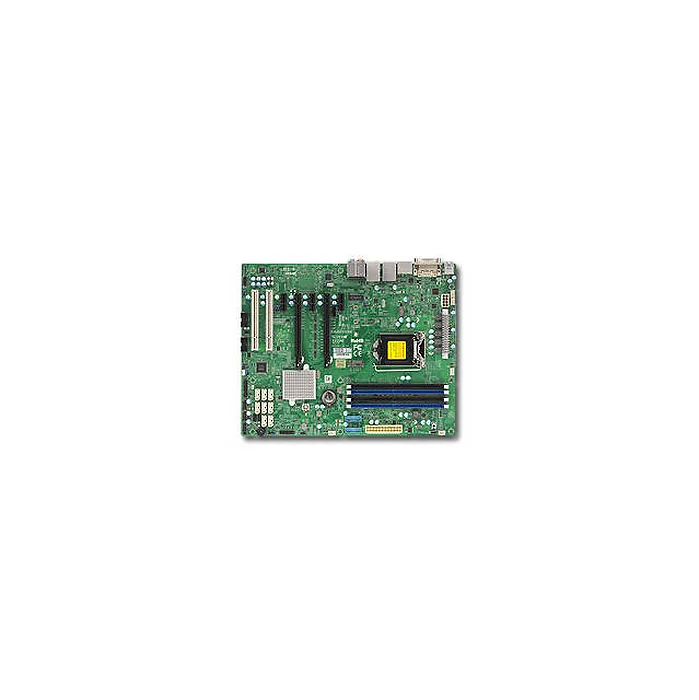

<p><b>Specifications</b></p><ul><li><strong>Mfr Part Number: </strong>X11SAE-B</li><li><strong>CPU:</strong> LGA1151<ul><li>Supports Intel Xeon E3-1200 v5 Processor</li><li>Supports 6th Generation Intel Core i7/ i5/ i3/ Pentium/ Celeron Processors</li><li>Support up to 95W TDP</li></ul></li><li><strong>Chipset: </strong>Intel C236</li><li><strong>Memory:</strong> 4x 288pin DDR4-2133/ 1866/ 1600 DIMM Slots, ECC, Unbuffered, Max Capacity of 64GB</li><li><strong>Slots:</strong> 2x PCI-Express 3.0 x16 Slots (run at 16/NA or 8/8), 3x PCI-Express 3.0 x1 Slots, 2x PCI Slots (5V, 32bit)</li><li><strong>SATA:</strong> 8x SATA3 Ports, Support RAID 0, 1, 5, 10</li><li><strong>Audio: </strong>Realtek ALC888S High Definition Audio CODEC</li><li><strong>LAN:</strong> Intel I210-AT + Intel PHY I219LM Gigabit Ethernet Controllers</li><li><strong>Ports:</strong> 2x USB 3.1 Ports, 6x USB 3.0 Ports (2 rear, 4 via headers), 8x USB 2.0 Ports (2 rear, 6 via headers), 1x DisplayPort, 1x DVI-D Port, 1x HDMI Port, 2x RJ45 LAN Ports</li><li><strong>Form Factor: </strong>ATX, 12.0 x 9.6 inch / 30.5 x 22.4 cm</li></ul>
<b>Form Factor</b><br>ATX <b>CPU</b><br>Single Socket H4 (LGA 1151) supports: <br>Intel Xeon processor E3-1200 v5, <br> Intel 6th Gen Core<sup>TM</sup> i7/i5/i3, <br> Intel Pentium,<br>Intel Celeron processors <br>CPU TDP up to 95W <b>Memory Capacity</b><br>4x 288-pin DDR4 DIMM slots><br>Up to 64GB DDR4 ECC UDIMM <b>Memory Type</b><br>2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs <b>DIMM Sizes</b><br>16GB, 8GB, 4GB <b>Memory Voltage</b><br>1.2 V <b>Error Detection</b><br>Corrects single-bit errors<br>Detects double-bit errors (using ECC memory) <b>Chipset</b><br>Intel C236 chipset <b>SATA</b><br>SATA3 (6Gbps) via C236 controller <br>RAID 0, 1, 5, 10 support <b>Network Controllers</b><br>Intel I210-AT + Intel PHY i219LM Ethernet Controllers<br>Virtual Machine Device Queues reduce I/O overhead<br>Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output <b>Audio</b><br>ALC 888S HD Audio <b>Input / Output</b><br>SATA : 8x SATA3 (6Gbps) ports<br>LAN : 2x RJ45 Gigabit Ethernet LAN ports<br>USB : 6x USB 3.0 ports (2 rear + 4 via headers) , 8x USB 2.0 ports (2 rear + 6 via headers) , 2x USB 3.1 (rear) <br>Video : 1 DVI - D, 1 DP (Display Port), 1 HDMI<br>Audio : 7.1 HD Jacks<br>Serial Port / Header : 2x COM ports (2 headers) <br>SuperDOM : 2x SuperDOM (Disk on Module) ports with built-in power<br>TPM : 1x TPM 1.2 20-pin Header <b>PCI-Express</b><br>2x PCI-E 3.0 x16 slots (run at 16/NA or 8/8) <br>3x PCI-E 3.0 x1 slots<br>2x 5V PCI 32bit slots <b>BIOS Type</b><br>128Mb SPI Flash EEPROM with AMI BIOS <b>BIOS Features</b><br>Plug and Play (PnP) <br>APM 1.2<br>DMI 2.3<br>PCI 2.3<br>ACPI 1.0 / 2.0 / 3.0 / 4.0<br>USB Keyboard support<br>Hardware BIOS Virus protection<br>SMBIOS 2.7.1<br>UEFI 2.3.1<br>RTC (Real Time Clock) Wakeup <b>Software</b><br>AMT<br>SuperDoctor 5<br>vPro<br>Watch Dog <b>Power Configurations</b><br>ACPI Power Management<br>Keyboard Wakeup from Soft-Off<br>CPU Fan auto-off in sleep mode<br>Power-on mode for AC power recovery <b>Voltage</b><br>Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages. <b>FAN</b><br>Total of 5 fan headers supporting up to 5 fans <br>5 fans with tachometer status monitoring<br>Status monitor for speed control<br>Status monitor for on/off control<br>Low noise fan speed control<br>Pulse Width Modulated (PWM) fan connectors <b>Temperature</b><br>Monitoring for CPU and chassis environment<br>CPU thermal trip support<br>1<sup>2</sup>C temperature sensing logic<br>Thermal Monitor 2 (TM2) support<br>PECI
