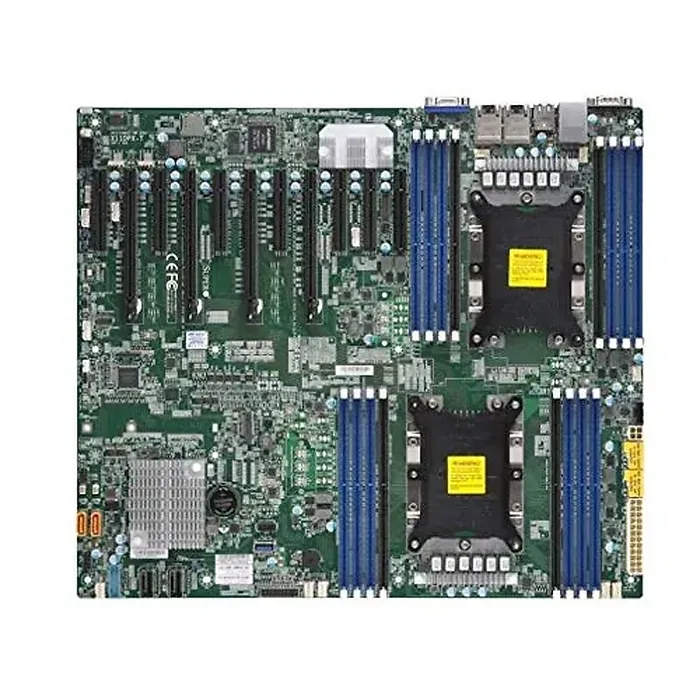

- Intel® Xeon® Scalable Processors., Dual Socket P (LGA 3647) supported, CPU TDP support 205W, 3 UPI up to 10.4 GT/s - Intel® C621 - Up to 2TB 3DS ECC RDIMM, DDR4-2666MHz; Up to 2TB 3DS ECC LRDIMM, in 16 DIMM slots - 2 PCI-E 3.0 x16,8 PCI-E 3.0 x8,1 PCI-E 3.0 x4 (in x8 slot) Or 4 PCI-E 3.0 x16 and 4 PCI-E 3.0 x8 and 1 PCI-E 3.0 x4 (in x8 slot)M.2 Interface: 1 PCI-E 3.0 x4M.2 Form Factor: 2280, 22110M.2 Key: M-Key - 1 VGA D-Sub Connector port - Intel® C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10 - Dual LAN with Intel® X550 10GBase-T Ethernet ControllerPhysical Stats - Form FactorProprietaryProcessor/Cache - CPUIntel Xeon Scalable Processors.Dual Socket P (LGA 3647) supported, CPU TDP support 205W, 3 UPI up to 10.4 GT/s - Cores / CacheUp to 28 coresSystem Memory - Memory CapacityUp to 2TB 3DS...
Physical Stats
- Form Factor
Proprietary
Processor/Cache
- CPU
Intel Xeon Scalable Processors.
Dual Socket P (LGA 3647) supported, CPU TDP support 205W, 3 UPI up to 10.4 GT/s
- Cores / Cache
Up to 28 cores
System Memory
- Memory Capacity
Up to 2TB 3DS ECC RDIMM, DDR4-2666MHz, Up to 2TB 3DS ECC LRDIMM, in 16 DIMM slots
- Memory Type
2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM
- DIMM Sizes
64GBRDIMM: 64GB
LRDIMM: 64GB
3DS LRDIMM: 128GB
- Memory Voltage
1.2V
- Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
- Chipset
Intel C621
- SATA
Intel C621 controller for 10 SATA3 (6 Gbps) ports, RAID 0,1,5,10
- IPMI
ASPEED AST2500
- Network Controllers
Dual LAN with Intel X550 10GBase-T Ethernet Controller
- Graphics
Aspeed AST2500 BMC
Input / Output
- SATA
10 SATA3 (6Gbps) port
- LAN
2 RJ45 10GBase-T ports
- USB
4 USB 2.0 ports (2 rear + 1 header),
5 USB 3.0 ports (2 rear + 2 headers + 1 Type A)
- Video Output
1 VGA D-Sub Connector port
- Serial Port / Header
2 COM Ports (1 rear, 1 header)
- TPM
1 TPM Header
Expansion Slots
- PCI-E
2 PCI-E 3.0 x16,
8 PCI-E 3.0 x8,
1 PCI-E 3.0 x4 (in x8 slot) Or 4 PCI-E 3.0 x16 and 4 PCI-E 3.0 x8 and 1 PCI-E 3.0 x4 (in x8 slot)
- M.2
M.2 Interface: 1 PCI-E 3.0 x4
Form Factor: 2280, 22110
Key: M-Key
System BIOS
- BIOS Type
AMI 32Mb SPI Flash ROM
- BIOS Features
Plug and Play (PnP)
ACPI 1.0 / 2.0 / 3.0 / 4.0
USB Keyboard support
SMBIOS 2.7.1
UEFI 2.3.1
Management
- Software
Intel Node Manager, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support, KVM with dedicated LAN, NMI, SPM, SSM, SUM, SuperDoctor 5, Watchdog
- Power Configurations
ACPI Power Management
PC Health Monitoring
- Voltage
+1.8V, +12V, +3.3V, +5V, +5V standby, 10 -fan status, 5+1 Phase-switching voltage regulator, Chassis intrusion header, HT, Supports system management utility, VBAT
- FAN
10x 4-pin fan headers (up to 10 fans)
- Temperature
N/A
- LED
CPU / System Overheat LED, Suspend static indicator LED, UID/Remote UID
- Other Features
Chassis intrusion detection, CPU thermal trip support for processor protection, Node Manager Support, RoHS
Operating Environment
- Operating Temperature Range
10^oC to 35^oC (50^oF to 95^oF)
- Non-Operating Temperature Range
-40^oC to 70^oC (-40^oF to 158^oF)
- Operating Relative Humidity Range
8% - 90% (non-condensing)
- Non-Operating Relative Humidity Range
5% - 95% (non-condensing)
Weight
2.00lb
