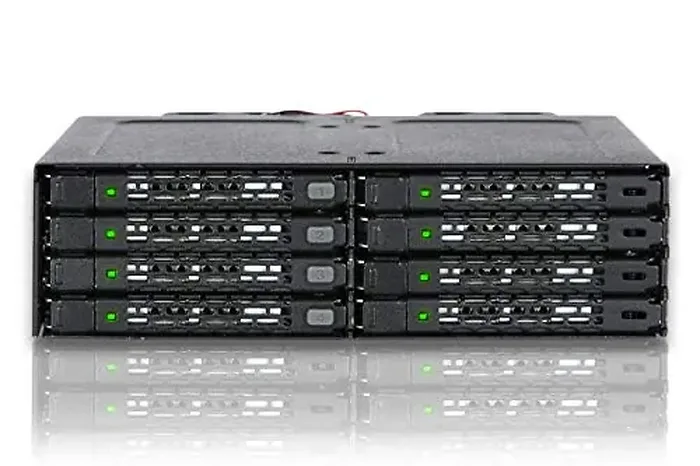

General InformationNo data storage enclosure is complete without reliable drive connections, and proper drive protection. Many enterprise applications rely on their data to run their business, and any major downtime or data loss can be crippling. The ToughArmor MB998IP-B utilizes a rugged full-metal removable drive enclosure, and the latest in drive connection technology, to bring you the best in stability, speed, and reliability. For your dense data storage needs, it holds an unprecedented 8x 2.5" SAS / SATA hot-swappable drives with 5mm-7mm height, all in a single 5.25" bay. The two Mini-SAS HD (SFF-8643) connectors at the rear of the unit makes it easy to connect to a modern RAID card and reduce cable clutter, while offering additional bandwidth and reliability over SATA connections. The dual 40mm user-controllable cooling fans and ventilated metal case keep your drives running longer, even under the toughest of loads. The fan has three modes the user can set; high, low, and off. The ToughArmor MB998IP-B features a rugged heavy duty full-metal enclosure designed to handle I/O intensive applications such as data mining, information retrieval, video processing, HPC, VDI, cloud service, database, and server. Countless Options in a Single Bay To maximize its storage density and compatibility, the ToughArmor MB998IP-B supports 8 x 5-7mm 2.5" SAS / SATA SSD or Hard disk drive, and only uses one standard external 5.25" computer bays (DVD-ROM bays). The MB998IP-B's compact, dense design makes it perfect for workstations, compact servers, gaming rigs, home servers, and HPCs that require high IOPS, high capacity, and low latency storage access. It works well in advanced RAID configurations such as RAID 6 or RAID 10 arrays, due to its use of 2x Mini-SAS HD (SFF-8643) connectors, and can be controlled by a single RAID card. The Mini-SAS HD connector is designed to improve the ease of installation and vastly reducing cable clutter, using only two cables compared to eight SATA cables. Mini-SAS HD can travel further without data loss, keeping your data transfers clean and secure in all situations. The use of Mini-SAS HD makes the MB998IP-B compatible with a wide variety of SAS expanders and RAID cards, making it easier to use in enterprise environments. Using the EZ Slide Nano trays makes drive interchangeability and maintenance completely hassle free. For drive security, the Eagle-hook lock system on the tray makes sure your hard drives will not eject when not needed. The trays are designed to accommodate 5 to 7mm height hard drives and SSDs, creating a 2.5" hot swap bay for any standard SATA / SAS hard drives and SSDs. Maximum Reliability and Stability Ensuring the safety of your valuable data is the foundation to any good system build or design. The MB998IP-B is capable of holding up to the most demanding environments with its rugged, heavy duty, full-metal construction in the entirety of the body and its smaller components. The ToughArmor's rugged full metal design is also perfect for industrial and medical devices that may require a flammability rating as the full metal material is considered to be already compliant with flammability requirements. In addition, the Anti-Vibration Technology (AVT) and EMI grounding ensure a stable platform for the drives being used, vastly improving reliability and drive longevity. The full metal construction of MB998IP-B allows for maximum heat dissipation, and combined with the dual 40mm cooling fans, keeps your drives at an optimal temperature even under intense access activity.Technical InformationNumber of Hard Drives Supported: 8Number of Hard Drives Installed: NoNumber of Solid State Drive Supported: 8Number of Solid State Drive Installed: No
Model Number :
MB998IP-B Color :
Black Host Interface :
2 x miniSAS HD 8643 Drive Fit :
8 x 2.5" SAS / SATA SSD or HDD (5 to 7mm drive height) Device Fit :
Single external half height 5.25" bay Transfer Rate :
SATA Up to 6 Gb/sec. (depending on hard drive speed)
SAS up to 12Gbps (Single channel) Power Input :
2 x 15pin SATA power port Insert and Extract connection Via :
Direct SATA hard drive connection Structure :
Metal Drive Cooling :
Dual 40mm rear cooling fan
Metal heat dispersion Power Indicator :
Solid green LED HDD Access Indicator :
Flashing green LED Weight
2.00 lb Warranty Information
manufacturer warranty
