General Information

---

Manufacturer:StarTech.com
Manufacturer Part Number:M45PATCH3GN
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com

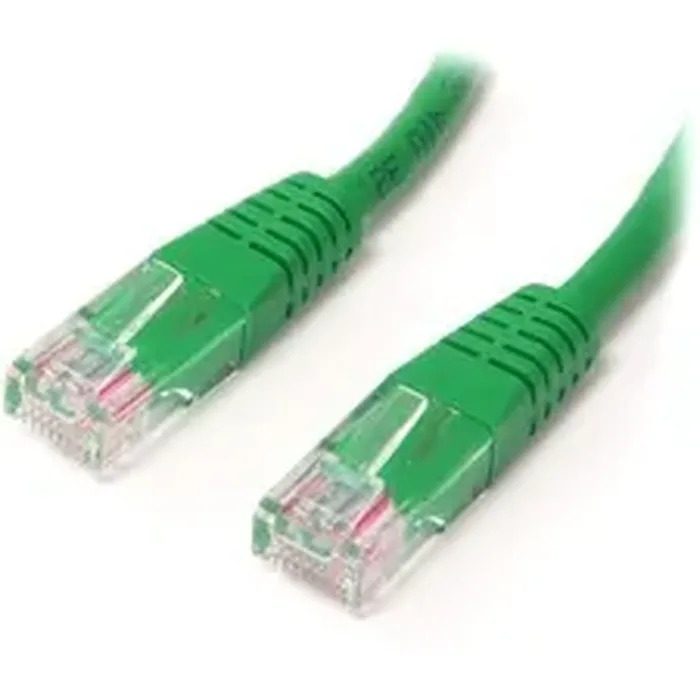

Product Name:Cat. 5E UTP Patch Cable
Marketing Information:

The M45PAT3GN Cat5e Patch Cable (3 ft) meets or exceeds all Cat 5e specifications to ensure reliable Ethernet network connections, and features a durable green PVC jacket that enables you to color code your network cable runs as needed.

To ensure long-lasting performance, this high quality Cat5e patch cable features molded PVC strain relief that prevents the RJ45 connector termination points from bending at sharp angles - reducing the risk of cable damage, which could decrease network performance.

Constructed of only top quality materials, this Cat5e Patch Cord delivers reliable performance and is backed by our Lifetime Warranty.

100% Copper - a better value

StarTech.com Cat5e cables are manufactured using high-quality copper conductors. While many cable manufacturers offer a "cheaper" cable, based on a copper-coated aluminum core, we make no compromises on quality to ensure you receive top value and performance for your network cable investment.

24 AWG Wire

This Cat 5e cable is constructed with 24 gauge copper wire, to support a broad range of Ethernet applications such as Power over Ethernet (PoE). Because we use a high quality copper wire, our cables easily sustain the power required for Power over Ethernet applications, whereas the inferior quality offered by copper-coated aluminum cables may be subject to insufficient power delivery, heat buildup, equipment damage and potentially, fire.

50-micron Gold Connectors

This molded patch cable offers high quality connectors comprised of 50-micron gold, to deliver optimum conductivity while eliminating signal loss due to oxidation or corrosion.

Product Type:Network Cable

Technical Information

---

Cable Type:Category 5e
Cable Characteristic:Patch Cable
Cable Length:3 ft
Connector Type on First End:RJ-45 Network - Male
Connector on First End Details:1 x RJ-45 Network - Male
Connector Type on Second End:RJ-45 Network - Male
Connector on Second End Details:1 x RJ-45 Network - Male
Contact Plating:Gold
Features:

• Molded
• Minimized Near-End Crosstalk (NEXT)
• Strain Relief
• PoE
• Damage Resistant
• Corrosion Resistant
• Bend Resistant
• Stranded

Conductor:Copper
Shielding:No
Jacket Type:CMG
Device Supported:

• Network Device
• Workstation
• Distribution Panel

American Wire Gauge:24 AWG

Physical Characteristics

---

Product Color:Green
Jacket Material:Polyvinyl Chloride (PVC)
Weight (Approximate):0.08 lb

Miscellaneous

---

Additional Information:

• 50-micron gold connectors ensure optimum conductivity while eliminating network signal loss due to oxidation or corrosion
• Backed by StarTech.com lifetime warranty
• Molded strain relief prevents the cable from being bent at sharp angles at the RJ45 connector, to minimize the stress at the plug termination point

Certifications & Standards:

• Type CM (UL)
• ETL
• FCC
• TIA/EIA-568A

Environmentally Friendly:Yes
Environmental Certification:

• RoHS
• WEEE
• REACH

Country of Origin:China

Warranty

---

Limited Warranty:Lifetime
