FG,LPE35002-M2,GEN7,32GFC,PCIE,2P
Lifecycle
Active Distrib. Inventory
Yes Ordering Optional Accessories
LP32-LW-OPT-1 32GFC Optic (longwave laser with LC connector SFP+ transceiver): 1 pack, LP32-LW-OPT-2 32GFC Optics (longwave laser with LC connector SFP+ transceiver): 2 pack Whats in the box
Each box includes:

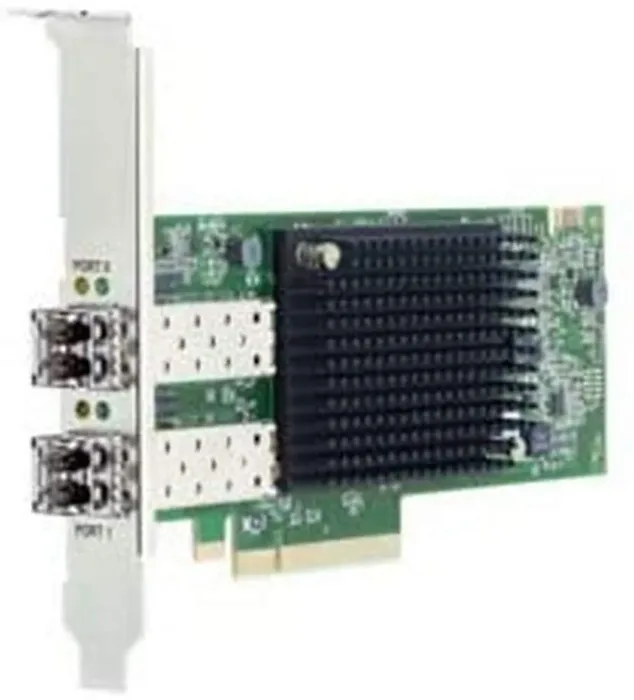

Quantity 1, low-profile Host Bus Adapter with optic/s
Quantity 1, full-height bracket
Quantity 1, low-profile bracket
Quantity 1, Firmware download sheet and RoHS sheet Generation
Gen 7 (64/32GFC) Cable Support
0.5m to 100m at 64GFC/32GFC on 50/125 m OM4 MMF, 0.5m to 100m at 64GFC/32GFC on 50/125 m OM5 MMF, 0.5m to 70m at 64GFC/32GFC on 50/125 m OM3 MMF, 10 km at 32GFC/16GFC on 9/125 m singlemode fiber when Emulex approved longwave transceivers are used Optical Data Rates
28.05 Gb/s (3200Mb/s), 14.025 Gb/s (1600Mb/s), 8.5 Gb/s (800Mb/s) (auto-detected) Hardware Environment
Intel x64, Intel x86, and PowerPC Ports
2 Optics
Optics Short wave lasers with LC type connector optics Host Bus Type
PCIe Gen4 x8 I/O Controller
XE601 Operating Humidity
5% to 95% non-condensing Operating Temperature
0^oC to 55^oC Storage Temperature
-20^o to 85^oC (-4^o to 185^oF) OS Support
Additional support is available from OEMs and partners, Microsoft Windows, Oracle Linux, Oracle Linux with the Unbreakable Enterprise Kernel (UEK), Oracle Solaris, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware vSphere Industry Standards
Current ANSI/IETF Standards: FC-PI-4, FC-DA, FC-DA-2, FC-FS, FC-FS-3, FC-FS-4, FC-FS-5, FC-GS-2/3/4/5, FC-GS-6, FC-GS-7, FC-LS-2, FC-LS-3, FC-MI, FC-NVMe, FC-NVMe/AM1, FC-PH, FC-PH-2, FC-PH-3, FC-PI, FC-PI-2, FC-PI-3, FC-PI-4, FC-PI-5, FC-PI-6, FC-PI-7, FC-TAPE, FCP-2/3, FCP-4, Legacy ANSI/IETF standards: FC-PH, SBC-3, SPC-3, SPC-4, SSC-2, SSC-3, SSC-4 Regulatory Certifications
Australia(RCM), Japan(VCCI Class A), China(China RoHS Compliant), EU (Low Voltage Directive), EU RoHS compliant, Europe CE Mark, FCC Class A, Korea (KCC Class A), North America, Taiwan(BSMI Class A), UL/CSA Recognized Popular Resources
AVG_Document_C:1211216169459, AVG_Document_C:1211226826158 Item Dimension (L inchxW inchxH inch)
9 x 7 x 2
Weight
1.00 lb
Warranty Information
3 Years
