With 11AC technology get 3x faster access and more reliable Internet for your home network applications such as streaming multimedia and multi-player gaming. Improved wireless range delivers better connections for multiple devices and large homes.

Specifications

• Mfr Part Number: KA1900
• Features:
  • Superfast Wireless Speed - Combined wireless speeds up to 1.9Gbps and with simultaneous dual band technology at 2.4GHz & 5GHz band avoids interference, ensuring top Wi-Fi speed and reliable connections
  • QAM256 Modulation Technology - Improve the  Wi-Fi speed from 150Mbps to 200Mbps in a single stream for 2.4GHz
  • Support 802.11ac - Offering 3 times faster data rate than 802.11n in a single stream
  • Gigabit Ethernet Ports - Allow up to 10 x higher speed than Fast Ethernet port
  • Six internal antennas - Six internal antennas (3T3R for 2.4GHz and 3T3R for 5GHz) to deliver the best wireless signal, fully expanded coverage
  • High Power - High-powered amplifi¬ers ensure continuous Wi-Fi signal to all your devices while boosting widespread coverage throughout your very large home
  • Simultaneous Dual Band - Reduces interference  for more stable connections
  • QoS - Advanced QoS automatically recognizes  & prioritizes streaming & gaming applications
  • Multi-function USB Ports - With one USB 2.0 and one USB3.0, you can access and share a printer as well as your files and media locally simultaneous. Via the router's FTP server, you can also have access to your files & media with networked devices remotely. The USB3.0 port can provide you unprecedented high-speed experience
  • Quick Setup - Quick Setup Assistant supporting multiple languages provides a quick & hassle free installation
  • Smart Wi-Fi Switch - Easily switch on/off the Wi-Fi function at a push of the Wi-Fi button
  • Simple Power Switch - Power ON/OFF button provide convenient power saving
  • Easy Reset Button - Never worry that you lost the login account
  • Secured Wi-Fi Encryption - WPA-PSK/WPA2- PSK encryptions provide active defense against security threats for user networks
  • Guest Network - Create a completely separate Wi-Fi network for your guests’ devices, ensuring they do not have access to your home network or to the shared USB hard drive with all your personal data
  • Parental Control - Allows parents to establish restricted access policies for children
• Hardware:
  • Physical Interface: 4x 10/100/1000 Mbps LAN port & 1x 10/100/1000 Mbps WAN port, 1x USB 2.0 & 1x USB 3.0
  • Buttons: ON/OFF, Reset, WiFi
  • LED Indicators: Power, LAN1/2/3/4, INET, 2.4G/5G, WPS, USB
  • Antenna: 6x internal 3dBi Antennas
  • Power: Input - 100-240V AC, 50Hz; Output - 12V/3A
  • Memory: 128MB Flash, 256MB RAM
  • Processor: BCM4709+2xBCM4360
• Wireless:
  • Wireless Standards: IEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz
  • Frequency: 2.4GHz, 5GHz
  • Wireless Speed: Up to 600Mbps for 2.4GHz and up to 1300Mbps for 5GHz, totals up to 1.9Gbps
  • Transmit Power: <(20dBm)
  • Wireless Security: 64/128-bit WEP, WPA-PSK/WPA2-PSK/TKIP/AES
  • Wireless Features: Enable/Disable Wireless Radio, Multi-SSID, WDS, Access Control List, Wireless Statistics
  • Guest Network: 1x 2.4GHz guest network, 1x 5GHz guest network
• Software:
  • WAN Connection Types: DHCP Client/Static IP/PPPoE, PPTP/ L2TP/ Bridge
  • Function Features: PPP Auto Reconnect and Configurable Timeouts, PPP Auto Reconnect on WAN Access/PPP on Demand Static Route, Dynamic RIPv1, RIPv2 support MTU Adjustment DNS Relay Agent/DDNS Support Network Address Translation (NAT) Port Forwarding, DMZ Support, UPnP(Universal Plug and Play) NAT Application Level Gateway for popular applications IGMP Snooping v1/2 and IGMP Multicast
  • DHCP: Server, Client, DHCP Client List, Address Reservation, DHCP Relay
  • Security Support: Parental Control, PAP/CHAP for PPP mode, NAT for Firewall, SPI Firewall, 2 Level (User/Admin) Authentication to Router, IP and MAC Filtering
  • Quality of Service: Priority Queuing /Classification Rules /802.1p, WMM
  • VPN Pass-through: IPSec/PPTP/L2TP Pass-through
  • Dynamic DNS: DynDns, NO-IP
  • USB sharing: Samba (Storage)/FTP Server/Media Server/Printer Server
  • Management Support:
    • DD-WRT Web GUI
    • FTP /HTTP /Telnet
    • Command Line Interface
    • Diagnostic Test
    • Firmware Upgrade-able
    • Supports Remote Access Control
• Other:
  • Operation System: Windows 10/8/7/vista/XP, Mac OS, Android, iOS
  • Environment:
    • Operating Temperature: -10°C~55°C (14~131°F)
    • Storage Temperature: -30°C~60°C (-22~140°F)
    • Operating Humidity: 5%~95% non-condensing
    • Storage Humidity: 5%~90% non-condensing
  • Dimension: 10.24 x 6.30 x 2.36 inch / 260.0 x 160.0 x 60.0 mm
  • Weight: 1.056 lbs / 480.0 g
  • Package Contents:

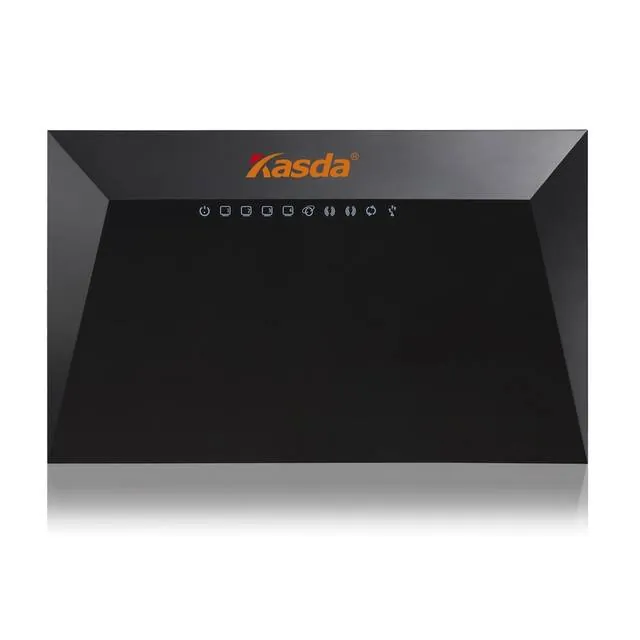

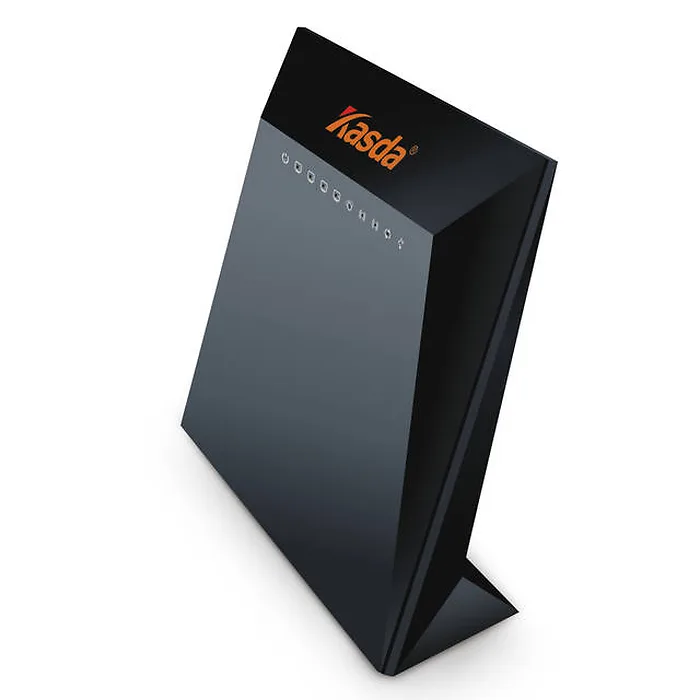

    • AC1900 Wireless Dual Band Gigabit Router KA1900
    • Power Adapter
    • RJ45 Cable
    • Quick Setup Guide
