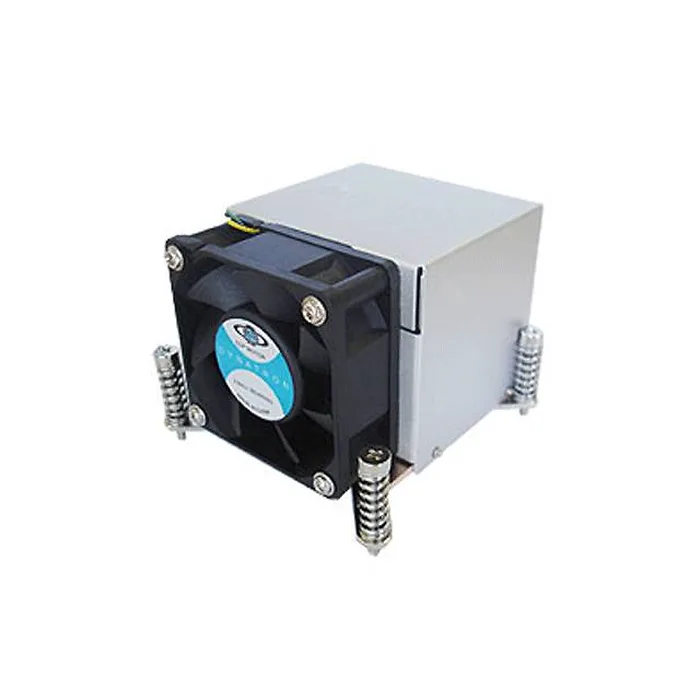

CPU Socket :
1156

CPU Support :
Intel Core i3 i3-530 i3-540, Core i5 i5-650, i5-650, i5-660, i5-661 i5-670 I5-750 Xeon Processor 3400 Series Core i7 Processors, I7-870 I7-860 Solution :
2U and Up Server

Material :
Copper Base with Aluminum Stacked Fin Fan Dimension:
60 x 60 x 25 mm Speed :
At Duty Cycle 020%: 1400 RPM
At Duty Cycle 50%: 3500 RPM
At Duty Cycle 100%: 7000 RPM Bearing :
2 Ball Bearing

Rated Voltage :
12 V Power :
At Duty Cycle 020%: 0.6 W
At Duty Cycle 50%: 1.20 W
At Duty Cycle 100%: 5.4 W Air Flow:
At Duty Cycle 020%: 7.405 CFM
At Duty Cycle 50%: 18.517 CFM
At Duty Cycle 100%: 38.283 CFM Noise Level :
At Duty Cycle 020%: 20.8 dBA
At Duty Cycle 50%: 35.9 dBA
At Duty Cycle 100%: 48.1 dBA Air Pressure :
At Duty Cycle 020%: 0.574mm-H2O
At Duty Cycle 50%: 3.586mm-H2O
At Duty Cycle 100%: 13.552mm-H2O Lead Wire Pin :
Out Pin1-Black (-)
Pin2-Yellow (+)
Pin3-Green (Techometer/Signal output)
Pin4-Blue (PWM) Item Dimension (L"xW"xH"):
3.5 x 3.43 x 2.52

Weight :
1.25 lb

Warranty Information :
1 Year
