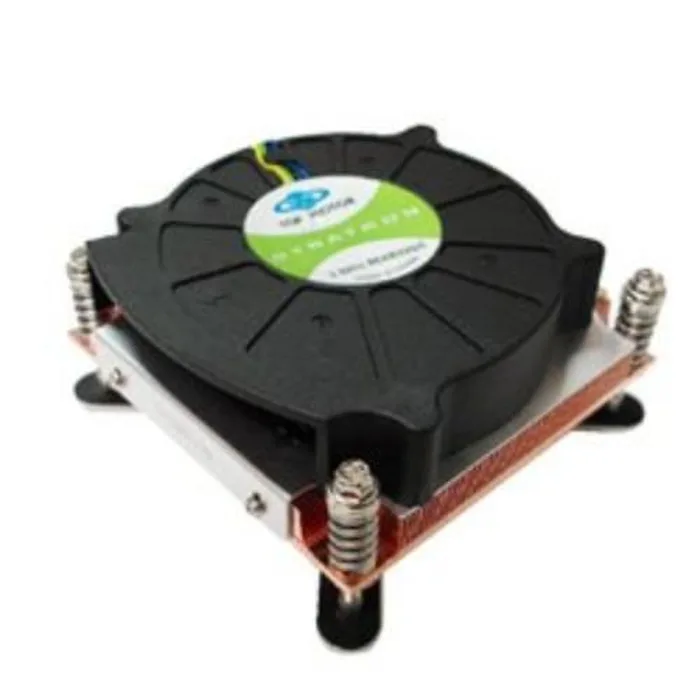

Fan InformationNumber of Fans: 1Fan Speed (rpm): 1 x 5000 rpmFan Bearing Type: Dual Ball BearingAir Flow: 1 x 14.7 CFMHeatsink InformationFins/Pins Style: Skive FinMount Type: Screw MountCompatible Processor Socket: Socket H2 LGA-1155, Socket H LGA-1156Interfaces/PortsConnectors: 4-pin PWMPower DescriptionInput Voltage: 12 V DCPhysical CharacteristicsMaterial: Copper HeatsinkForm Factor: InternalFan Diameter: 1 x 80 mmHeight: 1.1"Width: 3.2"Depth: 3.3"Weight (Approximate): 12.52 ozMiscellaneousCompatibility: Socket LGA 1155 Intel Processors:i7-2600i5-250012201220L122512301235124012451260L127012751280Application/Usage: ProcessorEnvironmentally Friendly: YesEnvironmental Certification: RoHSWarrantyLimited Warranty: 1 Year
CPU Socket : 1155 and 1156 CPU Support : Intel Core i5 I5-750 Xeon Processor 3400 Series Core i7 Processors, I7-870 and I7-860 Solution : 1U Server Overall Dimension : 85.0 x 81.5 x 28.5mm Weight : 355g +/- 5g Material : Copper Heatsink Fan Dimension : 80 x 80 x 15 mm Speed : At Duty Cycle 0-20%: 1000 RPM, At Duty Cycle 50%: 2500 RPM, At Duty Cycle 100%: 5000 RPM Bearing : 2 Ball Bearing Rated Voltage : 12 Power : At Duty Cycle 0-20%: 0.60 W, At Duty Cycle 50%: 1.44 W, At Duty Cycle 100%: 9.60 W Air Flow : At Duty Cycle 0-20%: 5.355 CFM, At Duty Cycle 50%: 7.654CFM, At Duty Cycle 100%: 14.719 CFM Noise Level : At Duty Cycle 0-20%: 20.71 dBA, At Duty Cycle 50%: 37.5 dBA, At Duty Cycle 100%: 51.7 dBA Air Pressure : At Duty Cycle 0-20%: 2.083 mm-H2O, At Duty Cycle 50%: 9.780 mm-H2O, At Duty Cycle 100%: 36.168 mm-H2O Lead Wire Pin Out : Pin1-Black (-), Pin2-Yellow (+), Pin3-Green (Techometer/Signal output), Pin4-Blue (PWM) Warranty : 1 Year
