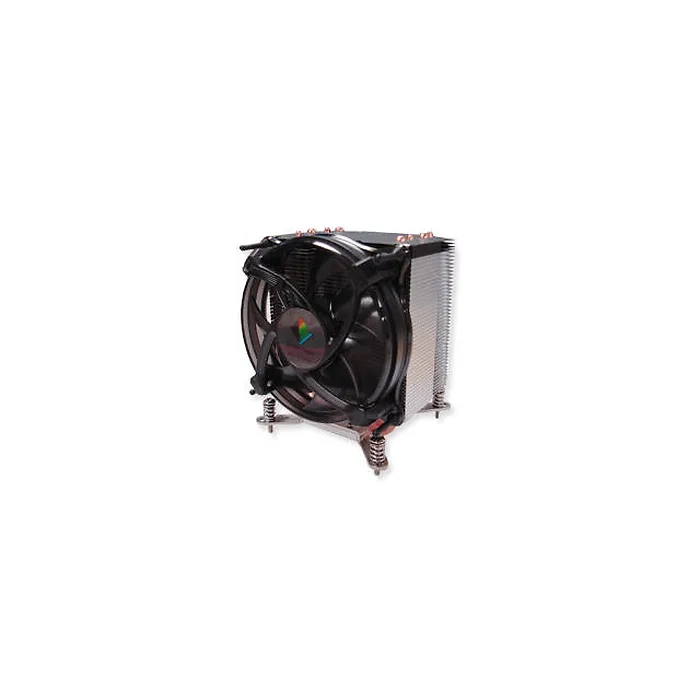

Interfaces/PortsConnectors: 4-pin PWMGeneral InformationProduct Type: Cooling Fan/HeatsinkManufacturer Part Number: K17Manufacturer Website Address: http://www.dynatron-corp.comManufacturer: Dynatron CorporationProduct Model: K17Product Name: K17 Cooling Fan/HeatsinkBrand Name: DynatronMiscellaneousApplication/Usage ProcessorCompatibility Intel Xeon Server Processor E3 Series Intel Core i7 Desktop Processors: 2600 2600K 880 875K 870 870S 860 860S Intel Core i5 Desktop Processors: 2500 2400 2310 2300 760 750 750S 680 670 661 660 655K 650 Intel Core i3 Desktop Processors: 2100 560 550 540 530 Pentium Desktop Processors: G850 G840 G6960 G6950 G620 G620T Certifications & Standards ULGreen Compliant YesGreen Compliance Certificate/Authority RoHSPhysical CharacteristicsMaterial: Aluminum FinFan Diameter: 1 x 3.62"Weight (Approximate): 1.17 lbForm Factor: InternalHeight: 4.3"Width: 3.6"Depth: 3.6"Fan Thickness: 1 x 0.98"Power DescriptionInput Voltage: 12 V DCWarrantyHeatsink InformationNumber of Heat Pipes: 4Compatible Processor Socket: Socket H3 LGA-1150Fan InformationAir Flow: 1 x 43.4 CFMFan Speed: 1 x 2500 rpmFan Bearing Type: Dual Ball BearingNumber of Fans: 1
CPU Socket
1155 / 1156 / 1150 CPU Support
LGA1155:
Intel Xeon Server Processor E3 Series
Intel Core i7 Desktop Processor 2600, 2600K, 880, 875K, 870, 870S, 860, 860S
Intel Core i5 Desktop Processor
2500,2400,2310,2300,760,750,750S, 680,670,661,660,655K, 650
Intel Core i3 Desktop Processor 2100,560,550,540,530
Pentium Desktop Processor G850, G840, G6960, G6950, G620, G620T Solution
3U and Up and Workstation Solution Material
Aluminum Fins
4 x Heat Pipes with H.C.C Technology Fan Dimensions
92 x 25mm Speed
All Duty Cycle 20%: 1000 RPM
At Duty Cycle 50%: 1.44W
All Duty Cycle 100%: 2500 RPM Bearing
2 Ball Bearing Rated Voltage
12 V Power
At Duty Cycle 20%: 0.96 W
At Duty Cycle 50%: 1.44 W
At Duty Cycle 100%: 3.0 W Air Flow
At Duty Cycle 20%: 17.34 CFM
At Duty Cycle 50%: 31.21 CFM
At Duty Cycle 100%: 43.36 CFM Noise Level
At Duty Cycle 20%: 17.0 dBA
At Duty Cycle 50%: 24.78 dBA
At Duty Cycle 100%: 31.92 dBA Air Pressure
At Duty Cycle 20%: 0.48 mm-H2O
At Duty Cycle 50%: 1.55 mm-H2O
At Duty Cycle 100%: 3.0 mm-H2O Lead Wire Pin Out
Pin1- (-)
Pin2- (+)
Pin3- (Techometer/Signal output)
Pin4- (PWM) Item Dimension (L"xW"xH")
4 x 4 x 4.8

Weight
1.00 lb

Warranty Information
1 Year
