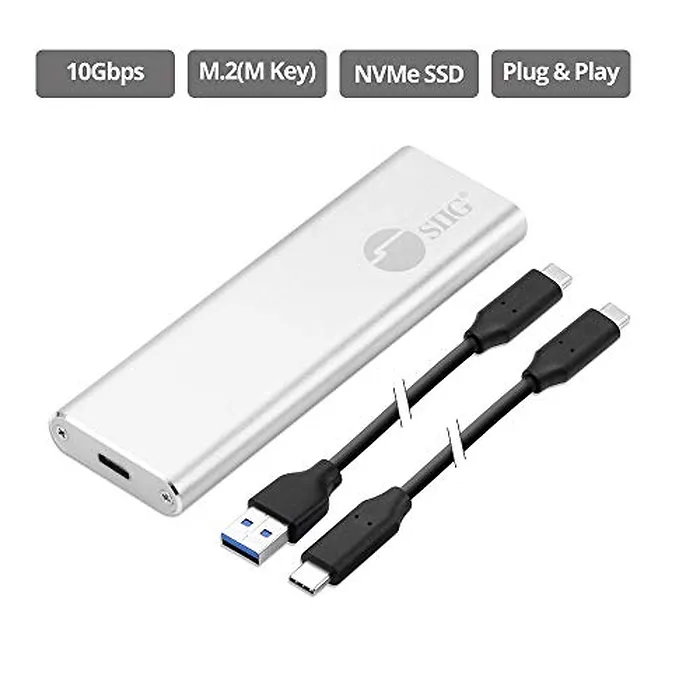

SIIG Drive Enclosure External - Silver - UASP Support - M.2 - USB 3.1 Type C - Aluminum
Chipset: JMicron JMS583
Compatible with PCIe 3.1a specification and backward compatible with PCIe 1.0 and PCIe 2.0
USB data transfer rate: Up to 10Gbps
Power source: USB bus power
Memory type
M.2 M key PCIe NVMe SSD
Form factor: 2230, 2242, 2260, 2280
Storage capacity: 2TB (max)
Product
Color: Silver
Housing material: Aluminum
Connectors:
1x 24-pin USB 3.1 Type-C, Female
1x M key M.2 PCIe NVMe slot
USB cable
USB 3.1, Type-A (M) to Type-C (M), 9.5 inches
USB 3.1, Type-C (M) to Type-C (M), 10 inches
Environmental conditions
Operating temperature: 32 to 140 degrees F
Storage temperature: 14 to 158 degrees F
Relative humidity: 5% to 90% RH (non-condensing)
Certifications/Standards
FCC, CE, RoHS
Requirements
Desktop PC or laptop with one available USB 3.1 Type-A or Type-C port
M.2 M key PCIe NVMe SSD up to 2TB
Windows 10 (32-/64-bit) / 8.x (32-/64-bit) / 7 (32-/64-bit)
Windows Server 2019 / 2016 / 2012 R2 / 2012 (32-/64-bit) / 2008 R2 / 2008
Mac OS X 10.6 or later
Package Contents
USB 3.1 Gen 2 Type-C to M.2 PCIe NVMe SSD Enclosure
USB 3.1 Type-A (M) to Type-C (M) cable
USB 3.1 Type-C (M) to Type-C (M) cable
Thermal silicon pad
Screw driver
Screw kit (screw nut)
Quick start guide
Item Dimension ( L inchxW inchxH inch)
5 x 1 x 2 Weight
1.0 lb Warranty Information
2 years
