Chipset:
STDP4320+VL817+VL102+RTL8153B+GL823K Compatible with USB-C Alt-mode and Thunderbolt 3 technology
Compatible with DisplayPort 1.2 with MST graphics cards with AMD Eyefinity, NVIDIA Surround and Intel Multiple Displays technology
Power Delivery 3.0 specification: 20/12/5V at 5A/3A/2A/1.5A, up to 100W
USB data transfer rate: up to 5Gb/s
Compatible networks:
10/100/1000 Mbps Memory Card Types:
SDHC 2.0, SDXC 2.0 up to 40Mbps Memory Card Capacity:
SDHC up to 32GB, SDXC up to 2TB (max) USB Bus-powered
Supported video cable length:
HDMI: Up to 5 meters (max)
DisplayPort: Up to 3 meters (max)
Resolution:
Single video mode:
DisplayPort: Up to 3840x2160 at 30Hz
HDMI: Up to 3840x2160p at 30Hz
Dual video mode:
DP and HDMI: Up to 1080p at 60Hz (each display)
Product:
Color: Iron Gray with Black
Housing material: Aluminum housing

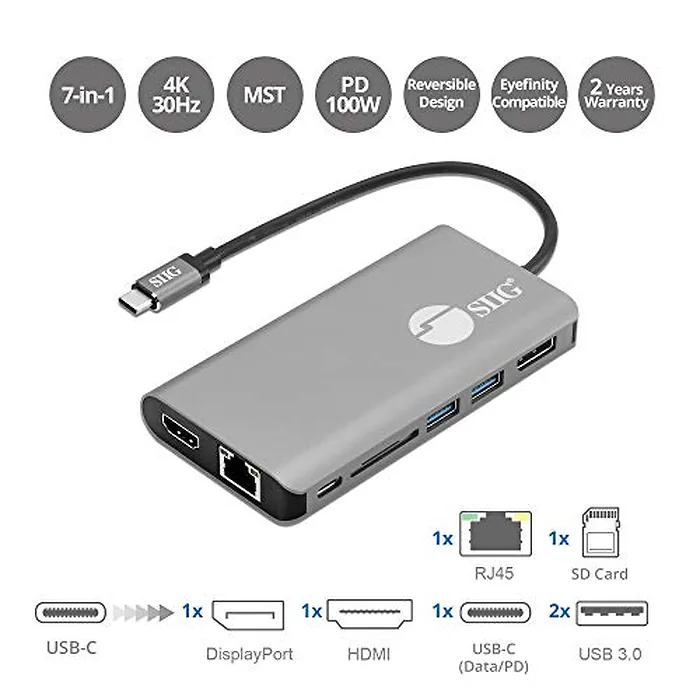

Connectors:
1x 24-pin, USB-C, Male, for PC connection
1x 24-pin, USB-C, Female, for PD 3.0 charging and USB 3.0 data transmission
2x 9-pin, USB 3.0, Female, output
1x 19-pin, HDMI Type-A video, Female, Output
1x 20-pin, DisplayPort video, Female, Output
1x 8-pin, RJ-45, Gigabit Ethernet, Female
1x SD Card Reader, Female
Cable:
USB-C
Length:200+-10mm
Environmental conditions:
Operating temperature: 32 to 104 degrees F
Storage temperature: 14 to 158 degrees F
Relative humidity: < 5% to 90% RH (non-condensing)
Certifications/Standards:
FCC, CE, RoHS
Item Dimension (L"xW"xH")
5 x 1 x 3
Weight
1.00 LB
Warranty Information
2 years
